visualizing data


đź”— mine.quarto.pub/visualizing-data


dr. mine çetinkaya-rundel
duke university + posit

why visualize

“The simple graph has brought more information to the data analyst’s mind than any other device.”

John Tukey

We visualize data to …

  • discover patterns that may not be obvious from numerical summaries

We have 13 datasets, each with 142 observations. For each observation we have values on two variables recorded: an X and a Y.

Summary statistics for these two variables for each of the datasets is given on the right.

How, if at all, are these 13 datasets different from each other?

dataset n Average x Average y
Dataset 1 142 54.3 47.8
Dataset 2 142 54.3 47.8
Dataset 3 142 54.3 47.8
Dataset 4 142 54.3 47.8
Dataset 5 142 54.3 47.8
Dataset 6 142 54.3 47.8
Dataset 7 142 54.3 47.8
Dataset 8 142 54.3 47.8
Dataset 9 142 54.3 47.8
Dataset 10 142 54.3 47.8
Dataset 11 142 54.3 47.8
Dataset 12 142 54.3 47.8
Dataset 13 142 54.3 47.8

Some more summary statistics…

How, if at all, are these 13 datasets different from each other?

dataset n Average x Average y St Dev x St Dev y
Dataset 1 142 54.3 47.8 16.8 26.9
Dataset 2 142 54.3 47.8 16.8 26.9
Dataset 3 142 54.3 47.8 16.8 26.9
Dataset 4 142 54.3 47.8 16.8 26.9
Dataset 5 142 54.3 47.8 16.8 26.9
Dataset 6 142 54.3 47.8 16.8 26.9
Dataset 7 142 54.3 47.8 16.8 26.9
Dataset 8 142 54.3 47.8 16.8 26.9
Dataset 9 142 54.3 47.8 16.8 26.9
Dataset 10 142 54.3 47.8 16.8 26.9
Dataset 11 142 54.3 47.8 16.8 26.9
Dataset 12 142 54.3 47.8 16.8 26.9
Dataset 13 142 54.3 47.8 16.8 26.9

And some more summary statistics…

How, if at all, are these 13 datasets different from each other?

dataset n Average x Average y St Dev x St Dev y Correlation
Dataset 1 142 54.3 47.8 16.8 26.9 -0.1
Dataset 2 142 54.3 47.8 16.8 26.9 -0.1
Dataset 3 142 54.3 47.8 16.8 26.9 -0.1
Dataset 4 142 54.3 47.8 16.8 26.9 -0.1
Dataset 5 142 54.3 47.8 16.8 26.9 -0.1
Dataset 6 142 54.3 47.8 16.8 26.9 -0.1
Dataset 7 142 54.3 47.8 16.8 26.9 -0.1
Dataset 8 142 54.3 47.8 16.8 26.9 -0.1
Dataset 9 142 54.3 47.8 16.8 26.9 -0.1
Dataset 10 142 54.3 47.8 16.8 26.9 -0.1
Dataset 11 142 54.3 47.8 16.8 26.9 -0.1
Dataset 12 142 54.3 47.8 16.8 26.9 -0.1
Dataset 13 142 54.3 47.8 16.8 26.9 -0.1

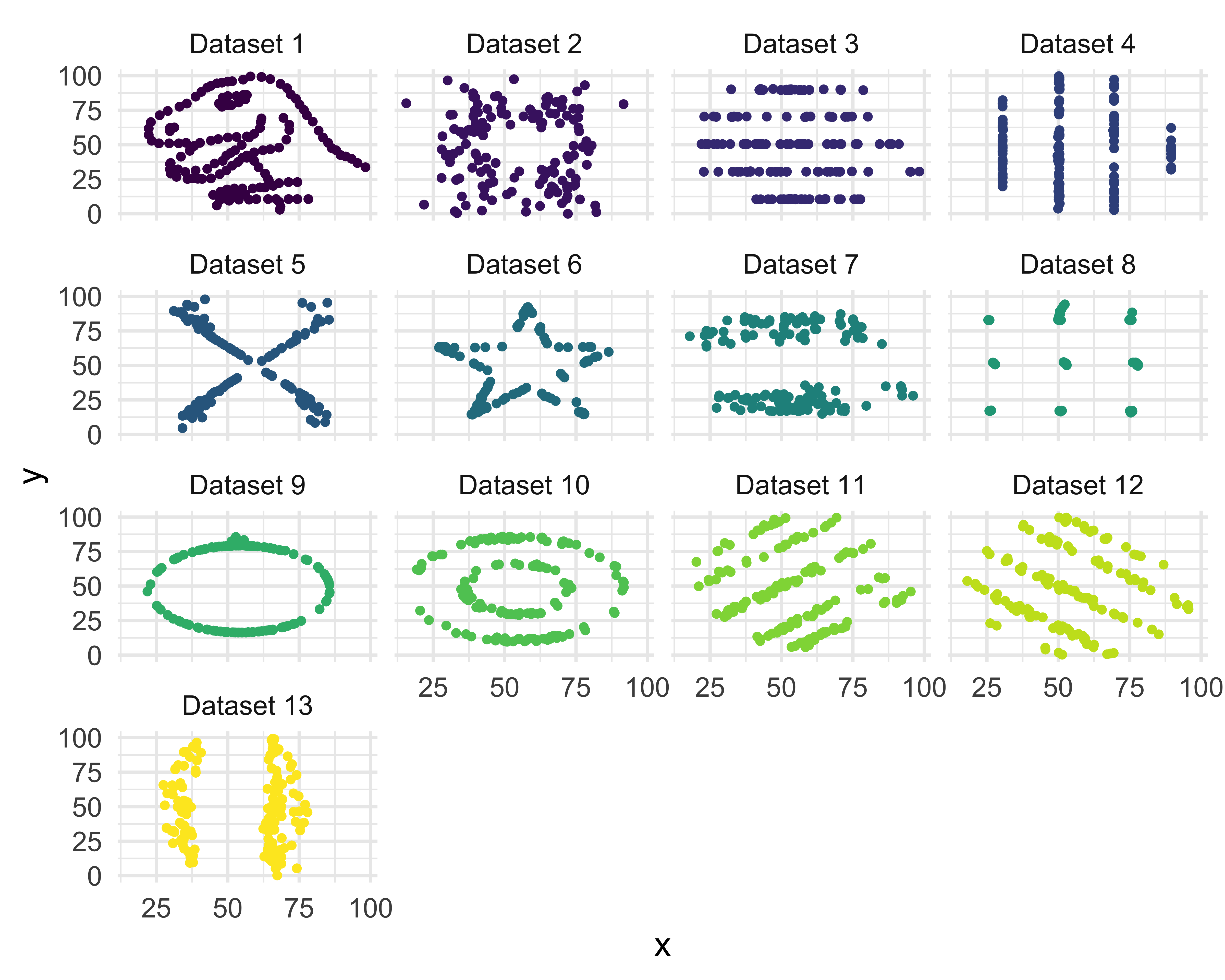

And finally a visualization!

How, if at all, are these 13 datasets different from each other?

We visualize data to …

  • discover patterns that may not be obvious from numerical summaries

  • convey information in a way that is otherwise difficult/impossible to convey

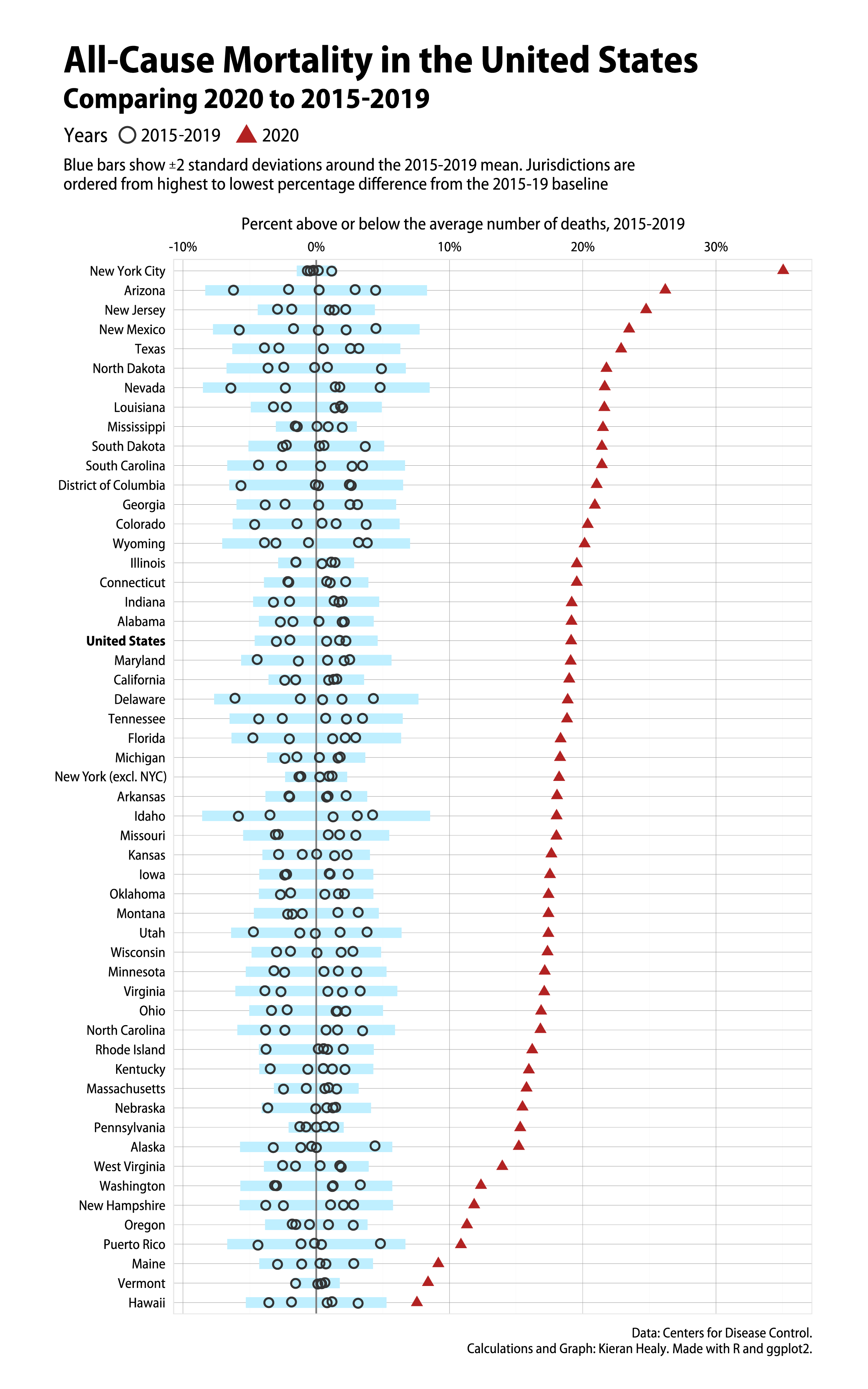

Describe, in words, what this visualization shows.

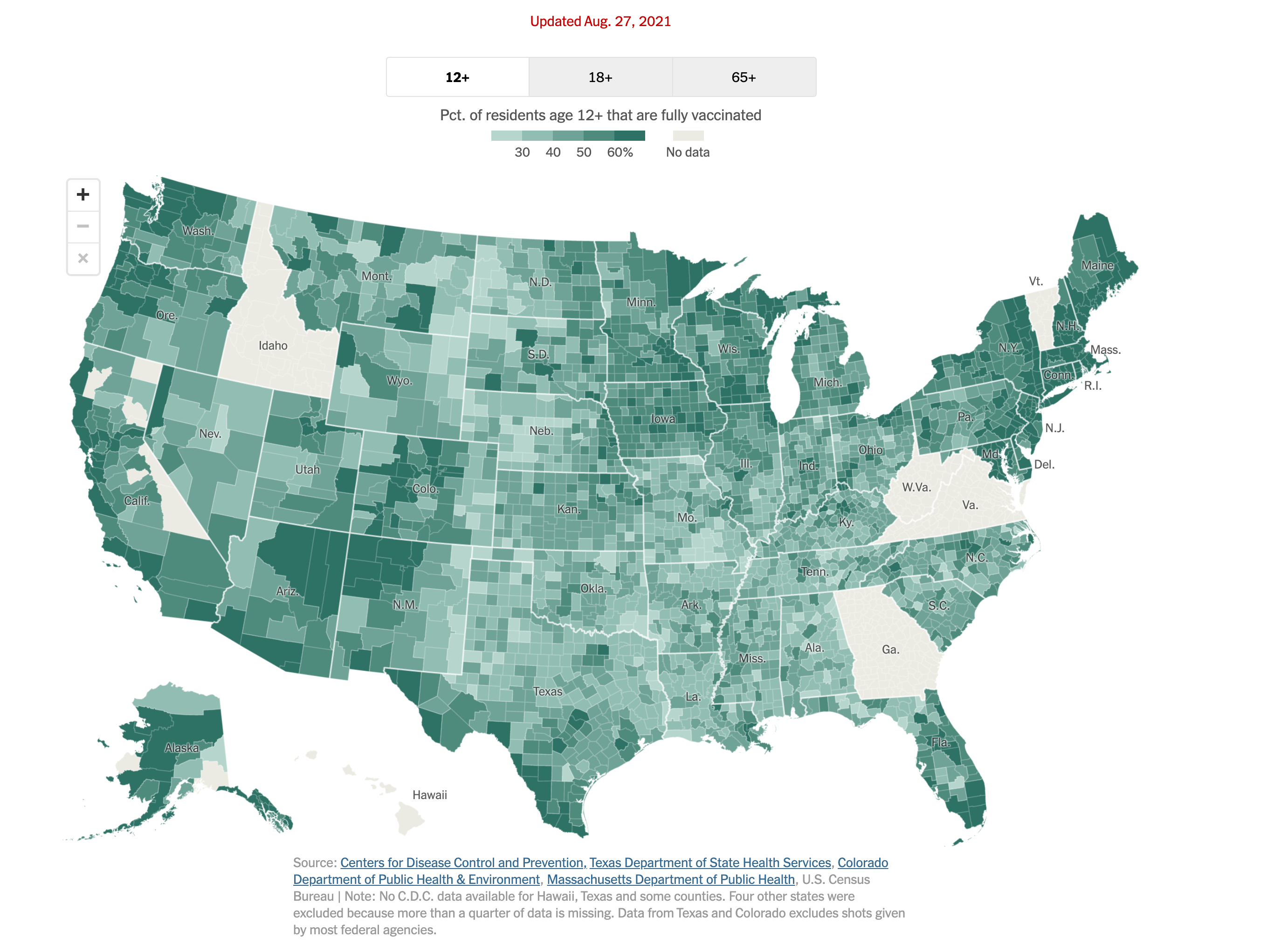

Describe, in words, what this visualization shows.

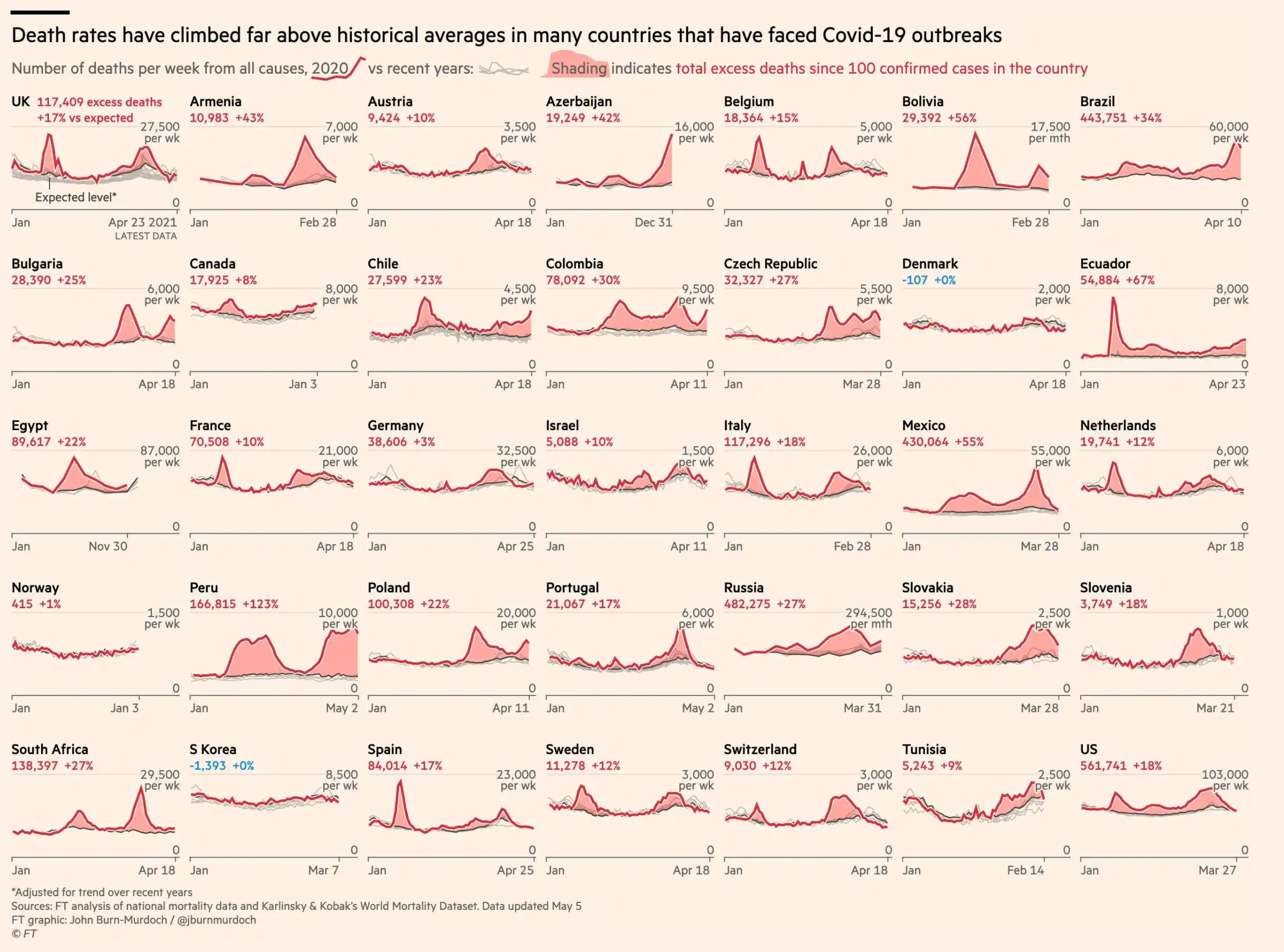

Describe, in words, what this visualization shows.

how visualize

and how not

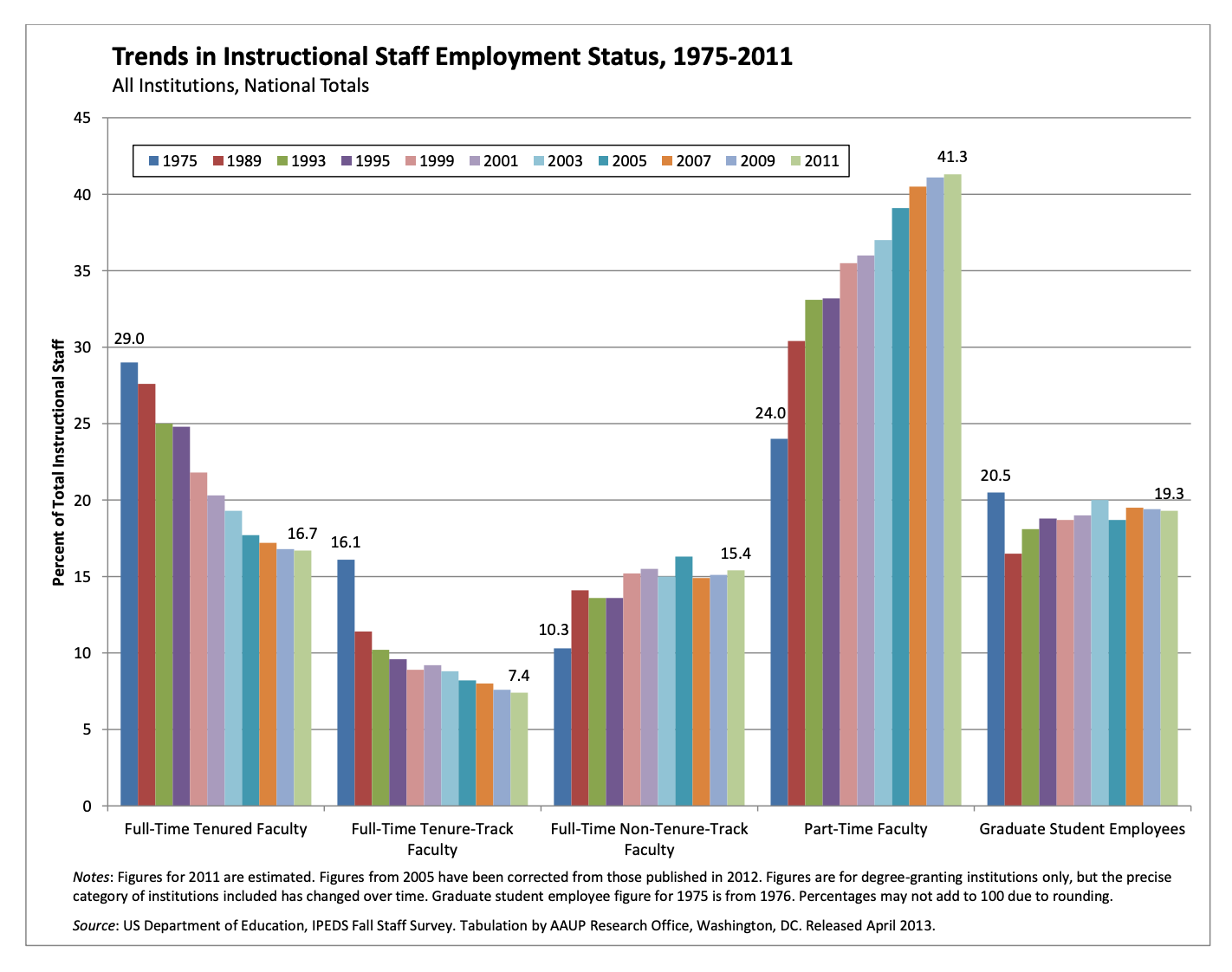

The American Association of University Professors (AAUP) is a nonprofit membership association of faculty and other academic professionals. This report by the AAUP shows trends in instructional staff employees between 1975 and 2011, and contains the following image.

What trends are apparent in the visualization on the right?

Data

Each row in this dataset represents a faculty type, and the columns are the years for which we have data. The values are percentage of hires of that type of faculty for each year.

Faculty type 1975 1989 1993 1995 1999 2001 2003 2005 2007 2009 2011
Full-Time Tenured Faculty 29.0 27.6 25.0 24.8 21.8 20.3 19.3 17.8 17.2 16.8 16.7
Full-Time Tenure-Track Faculty 16.1 11.4 10.2 9.6 8.9 9.2 8.8 8.2 8.0 7.6 7.4
Full-Time Non-Tenure-Track Faculty 10.3 14.1 13.6 13.6 15.2 15.5 15.0 14.8 14.9 15.1 15.4
Part-Time Faculty 24.0 30.4 33.1 33.2 35.5 36.0 37.0 39.3 40.5 41.1 41.3
Graduate Student Employees 20.5 16.5 18.1 18.8 18.7 19.0 20.0 19.9 19.5 19.4 19.3

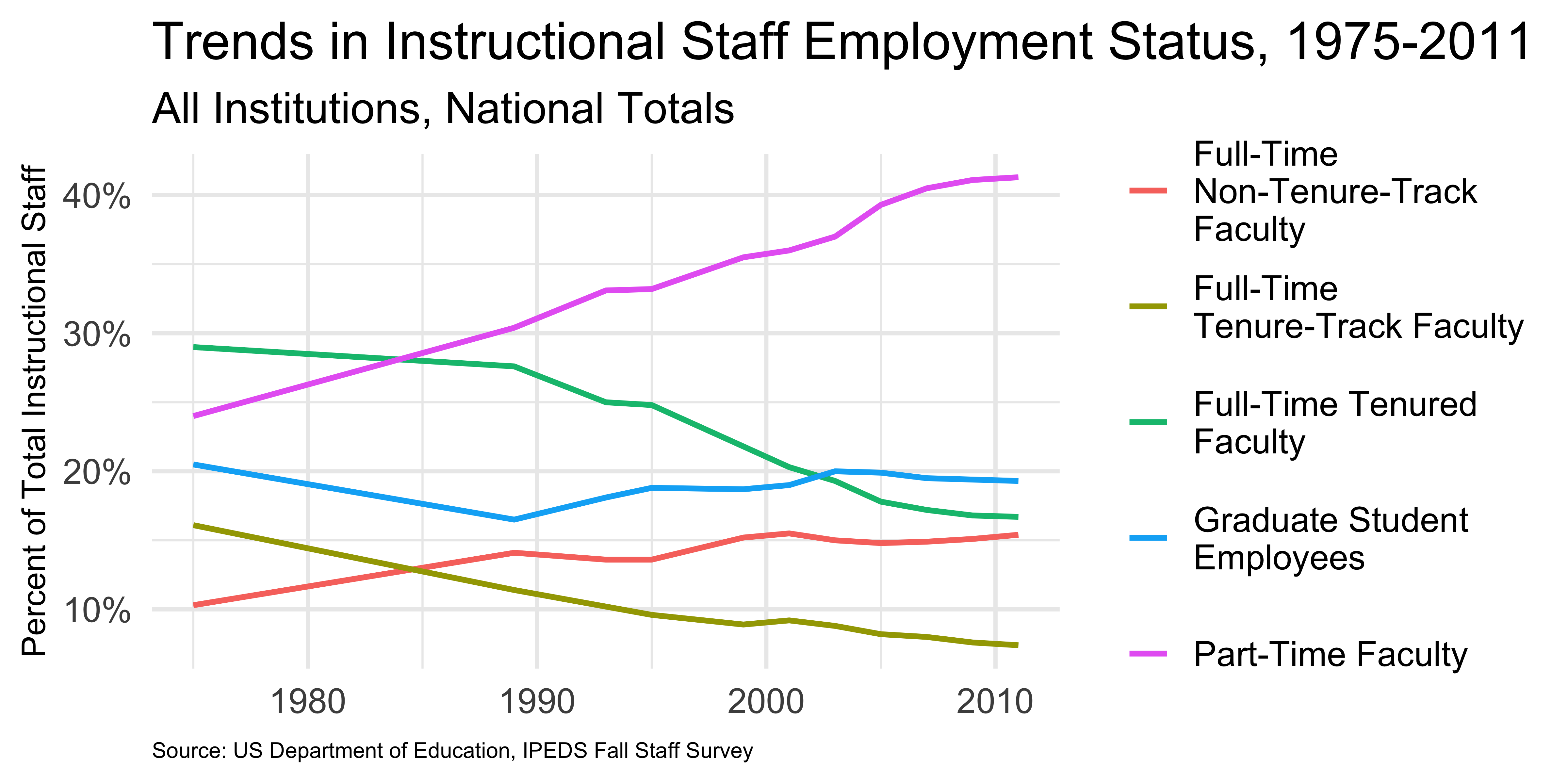

Recreate

Represent percentages as parts of a whole

Place time on x-axis

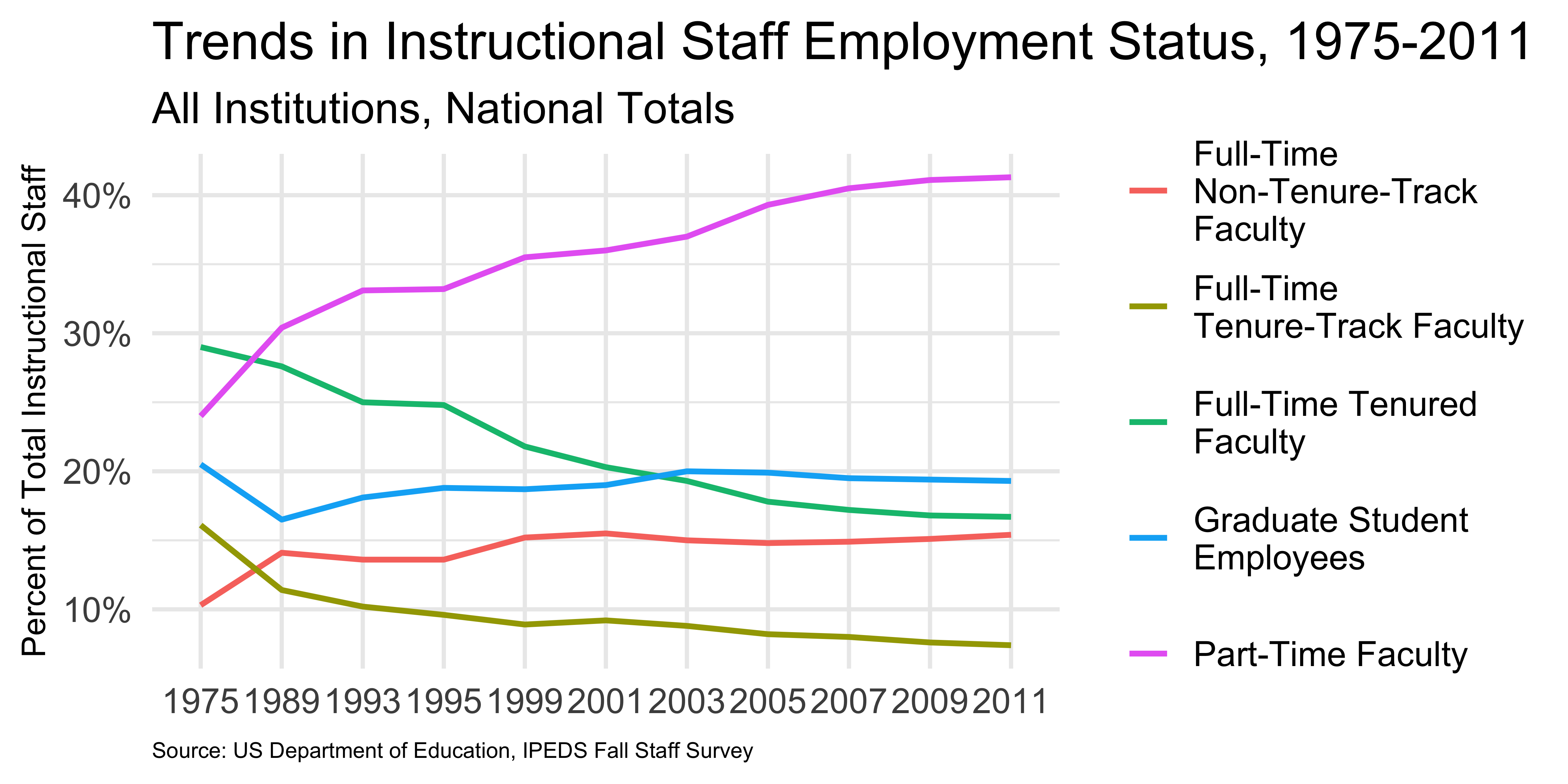

Represent time as time

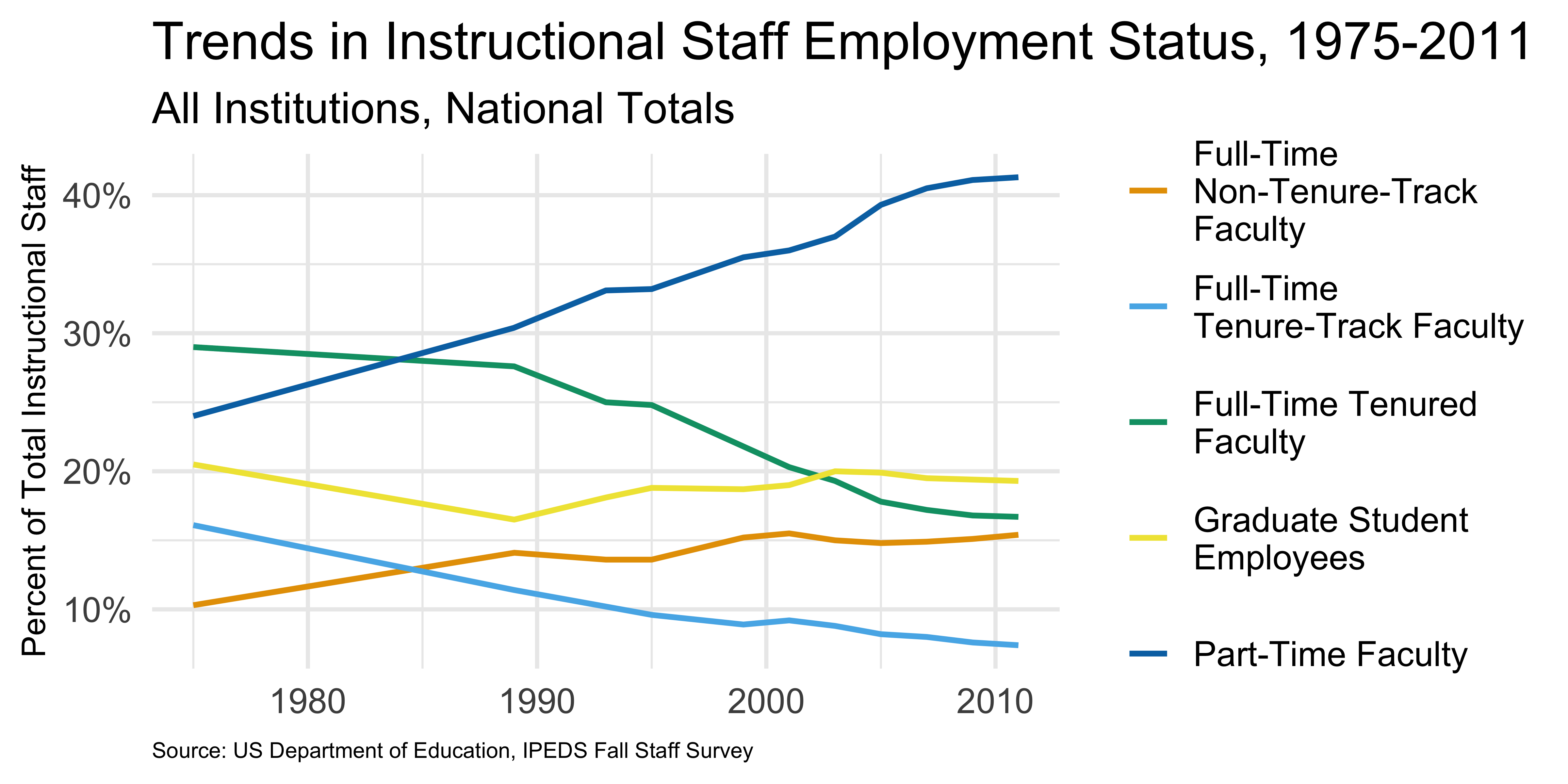

Use an accessible color scale

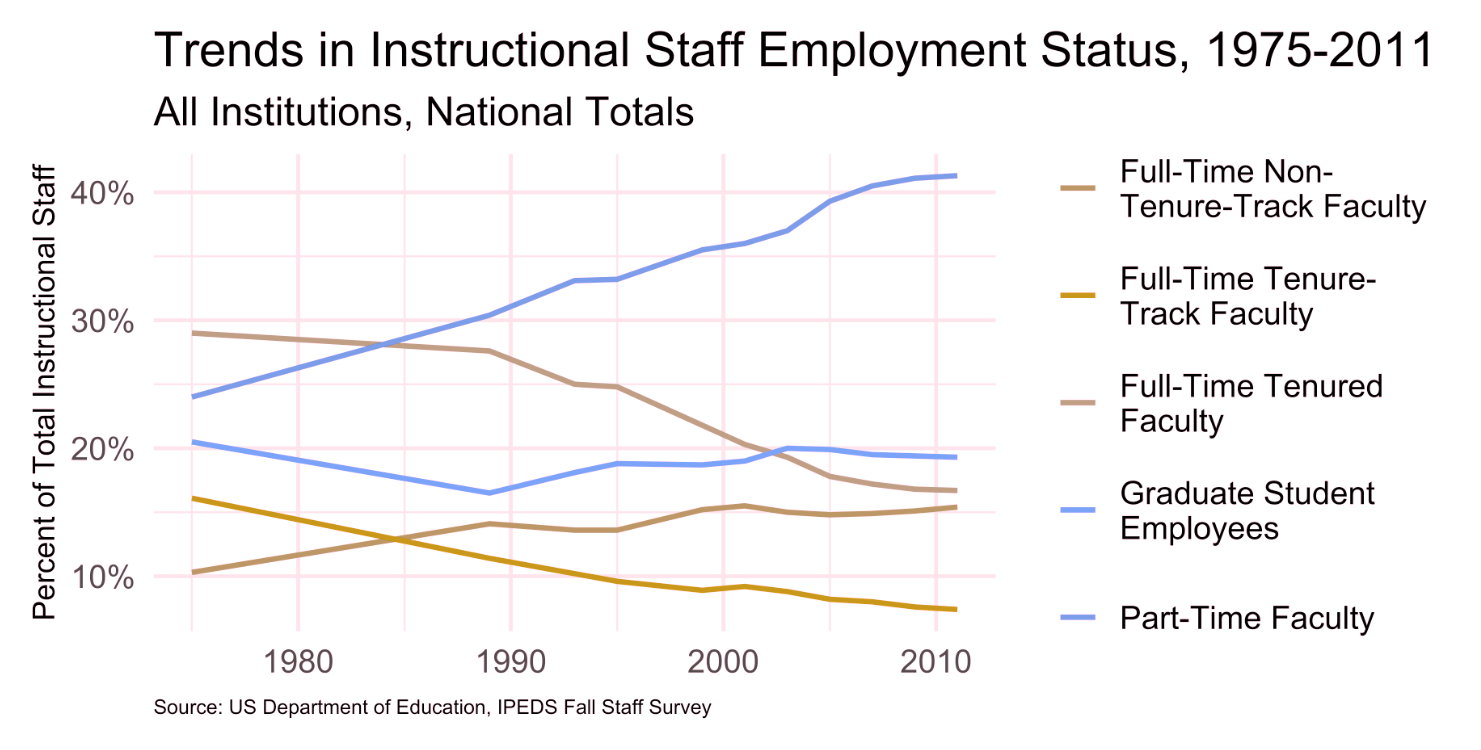

This is how the previous plot might look like to someone with Deuteranopia (a type of red-green confusion)

Use an accessible color scale

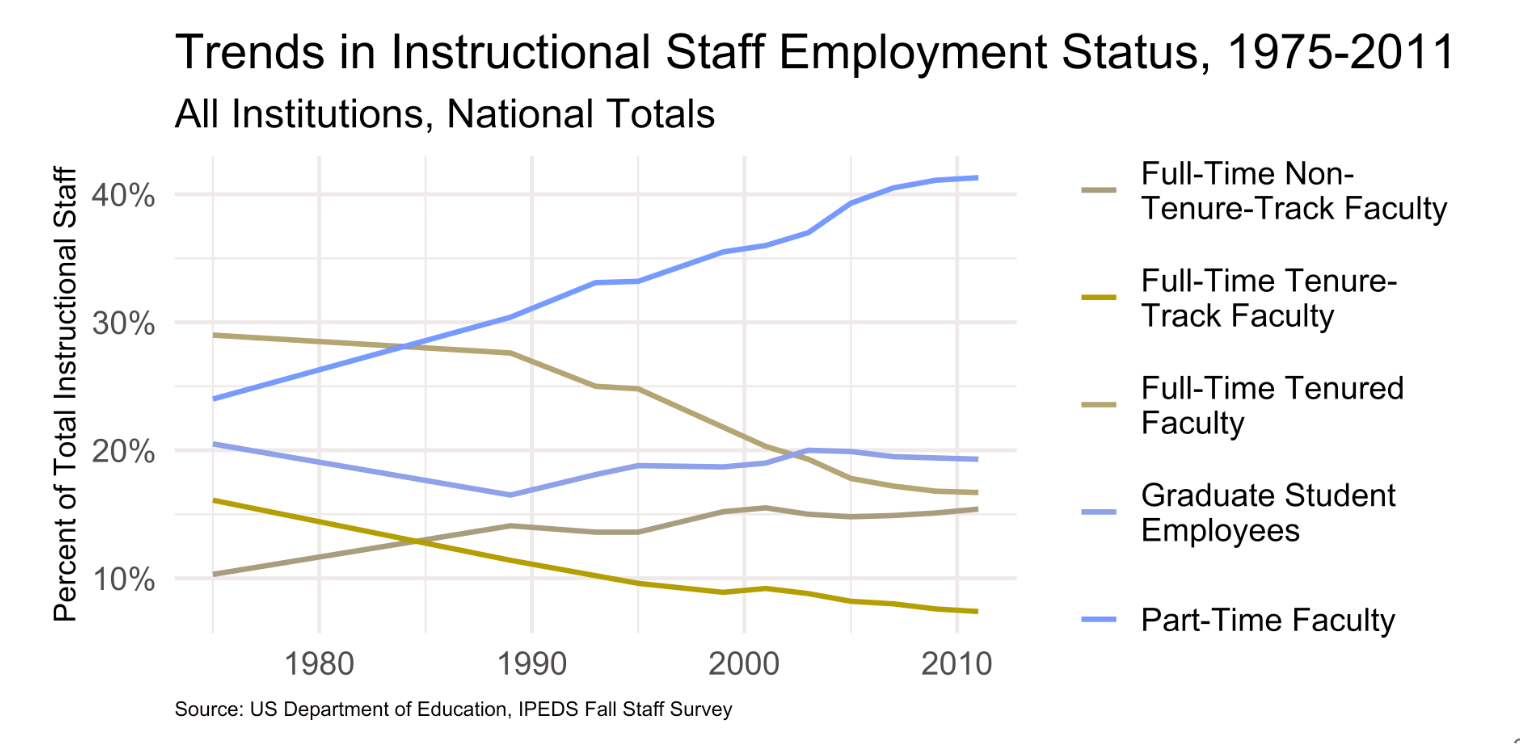

This is it might look like to someone with Protanopia (also a type of red-green confusion)

Use an accessible color scale

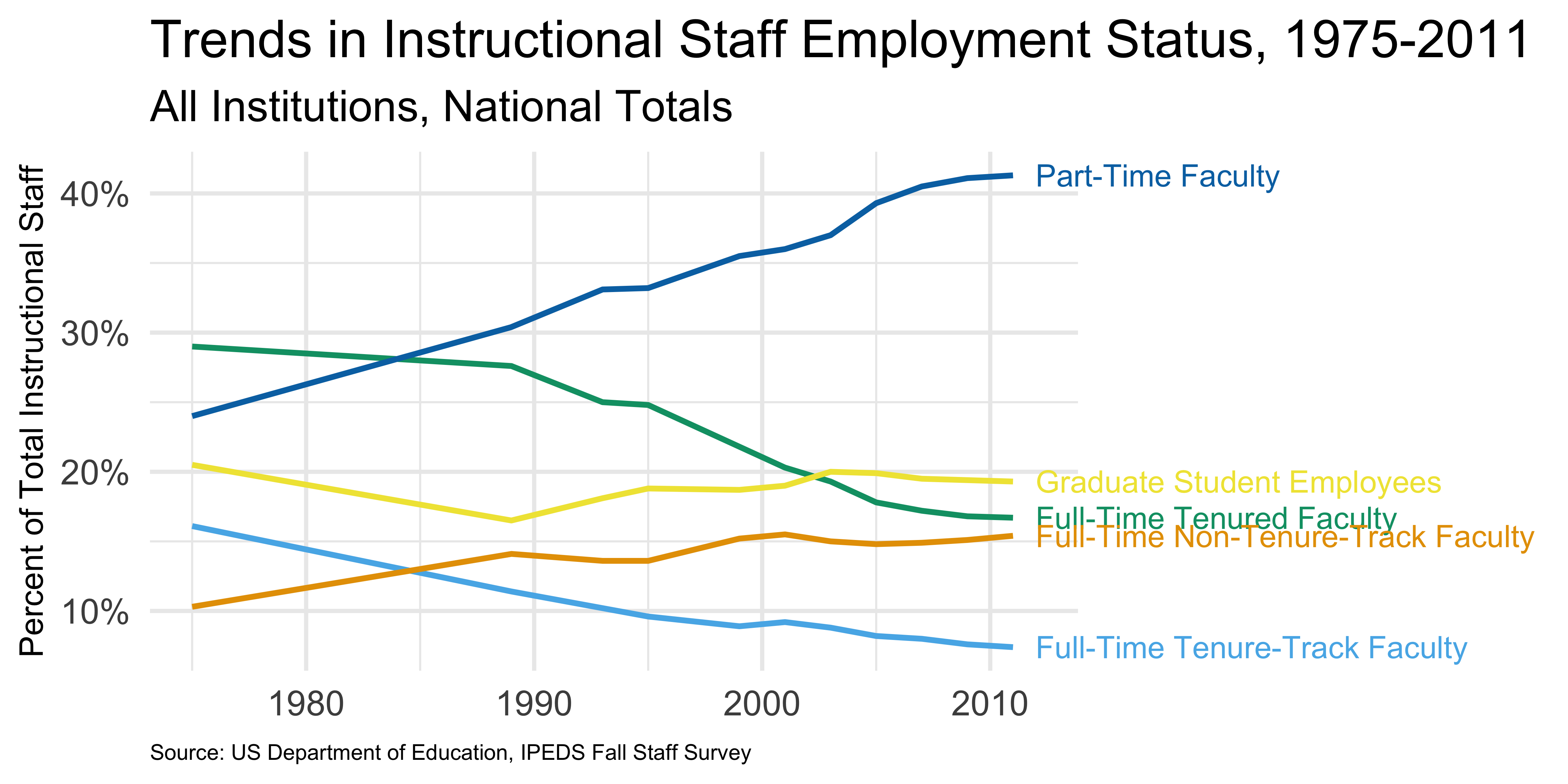

Use direct labeling

Use color to draw attention

Pick a purpose

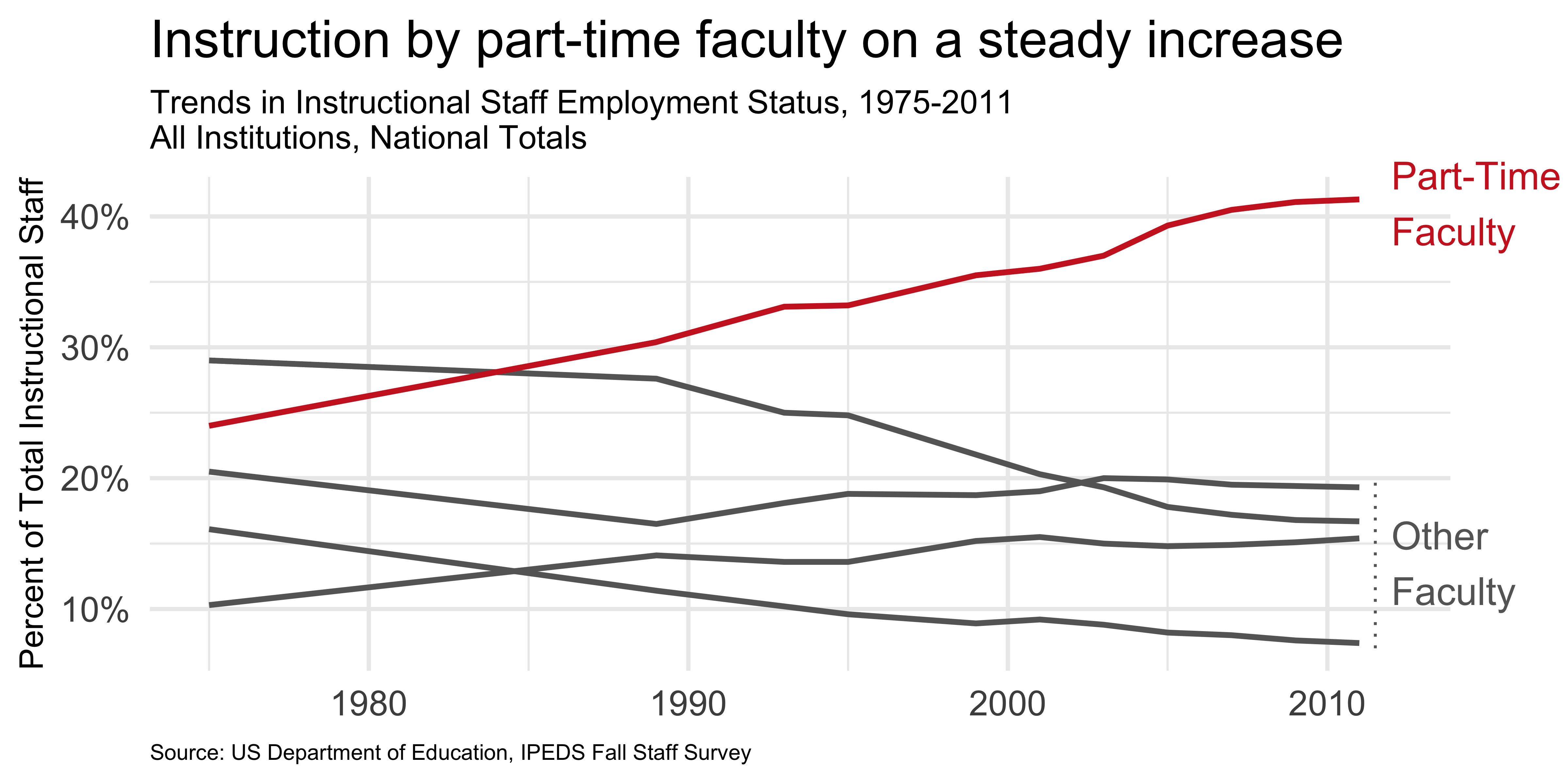

Use labels to communicate the message

Simplify

Summary

  • Represent percentages as parts of a whole
  • Place variables representing time on the x-axis when possible
  • Pay attention to data types, e.g., represent time as time on a continuous scale, not years as levels of a categorical variable
  • Prefer direct labeling over legends
  • Use accessible colors
  • Use color to draw attention
  • Pick a purpose and label, color, annotate for that purpose
  • Communicate your main message directly in the plot labels
  • Simplify before you call it done (a.k.a. “Before you leave the house, look in the mirror and take one thing off”)

Case study 2:
Bachelor’s degrees

Data

Each row in this dataset represents a field / year combination. For each combination we know the number and the percentage of graduates. Only the most popular three fields are identified, the remaining fields are lumped into “Other”.

year field perc
1971 Business 0.1374204
1971 Health professions 0.0300370
1971 Social sciences and history 0.1849690
1971 Other 0.6475736
1976 Business 0.1546547
1976 Health professions 0.0582071
1976 Social sciences and history 0.1365342
1976 Other 0.6506039
1981 Business 0.2144289
1981 Health professions 0.0680807

Should these data be displayed in a table or a plot?

Popular Bachelor's degrees over the years
Field 1971 1976 1981 1986 1991 1996 2001 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Business 14% 15% 21% 24% 23% 19% 21% 22% 21% 21% 21% 22% 22% 21% 20% 20% 19% 19%
Health professions 3% 6% 7% 7% 5% 7% 6% 6% 6% 7% 7% 8% 8% 8% 9% 10% 11% 11%
Social sciences and history 18% 14% 11% 9% 11% 11% 10% 11% 11% 11% 11% 11% 10% 10% 10% 10% 9% 9%
Other 65% 65% 61% 60% 60% 62% 62% 62% 62% 61% 61% 60% 60% 60% 60% 61% 61% 61%

Tables vs. plots

Tables:

  • To look up or compare individual values
  • To display precise values
  • To include detail and summary values
  • To display quantitative values including more than one unit of measure

Plots:

  • To reveal relationships among whole sets of values
  • To display a message that is contained in the shape of the values (e.g., patterns, trends, exceptions)

Add visualizations to your table

Popular Bachelor's degrees over the years
Field Trend 1971 1976 1981 1986 1991 1996 2001 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Business 14% 15% 21% 24% 23% 19% 21% 22% 21% 21% 21% 22% 22% 21% 20% 20% 19% 19%
Health professions 3% 6% 7% 7% 5% 7% 6% 6% 6% 7% 7% 8% 8% 8% 9% 10% 11% 11%
Social sciences and history 18% 14% 11% 9% 11% 11% 10% 11% 11% 11% 11% 11% 10% 10% 10% 10% 9% 9%
Other 65% 65% 61% 60% 60% 62% 62% 62% 62% 61% 61% 60% 60% 60% 60% 61% 61% 61%

Summary

  • A table may be preferable to a visualization
  • A table can be enhanced with a visualization

Case study 3:
COVID-19 Deaths

Data

Each row represents a country date combination. For each combination we have the total number of cases, the cumulative cases, and the days elapsed since 10th confirmed COVID-19 case in that country.

country date tot_cases cumulative_cases days_elapsed
China 2020-01-22 17 17 0
China 2020-01-23 1 18 1
China 2020-01-24 8 26 2
China 2020-01-25 16 42 3
China 2020-01-26 14 56 4
China 2020-01-27 26 82 5
China 2020-01-28 49 131 6
China 2020-01-29 2 133 7
China 2020-01-30 38 171 8
China 2020-01-31 42 213 9

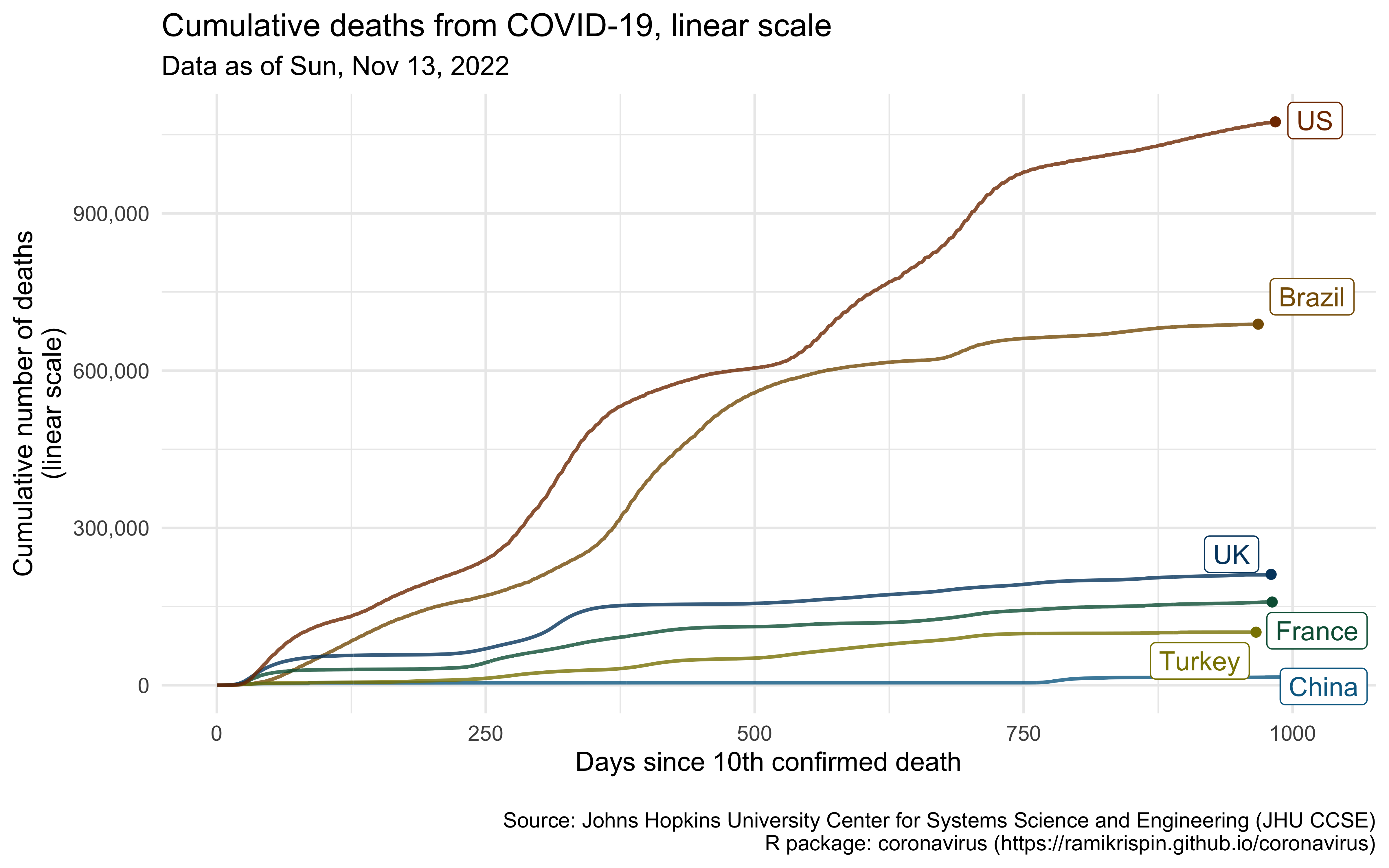

Plot 1: Linear scale

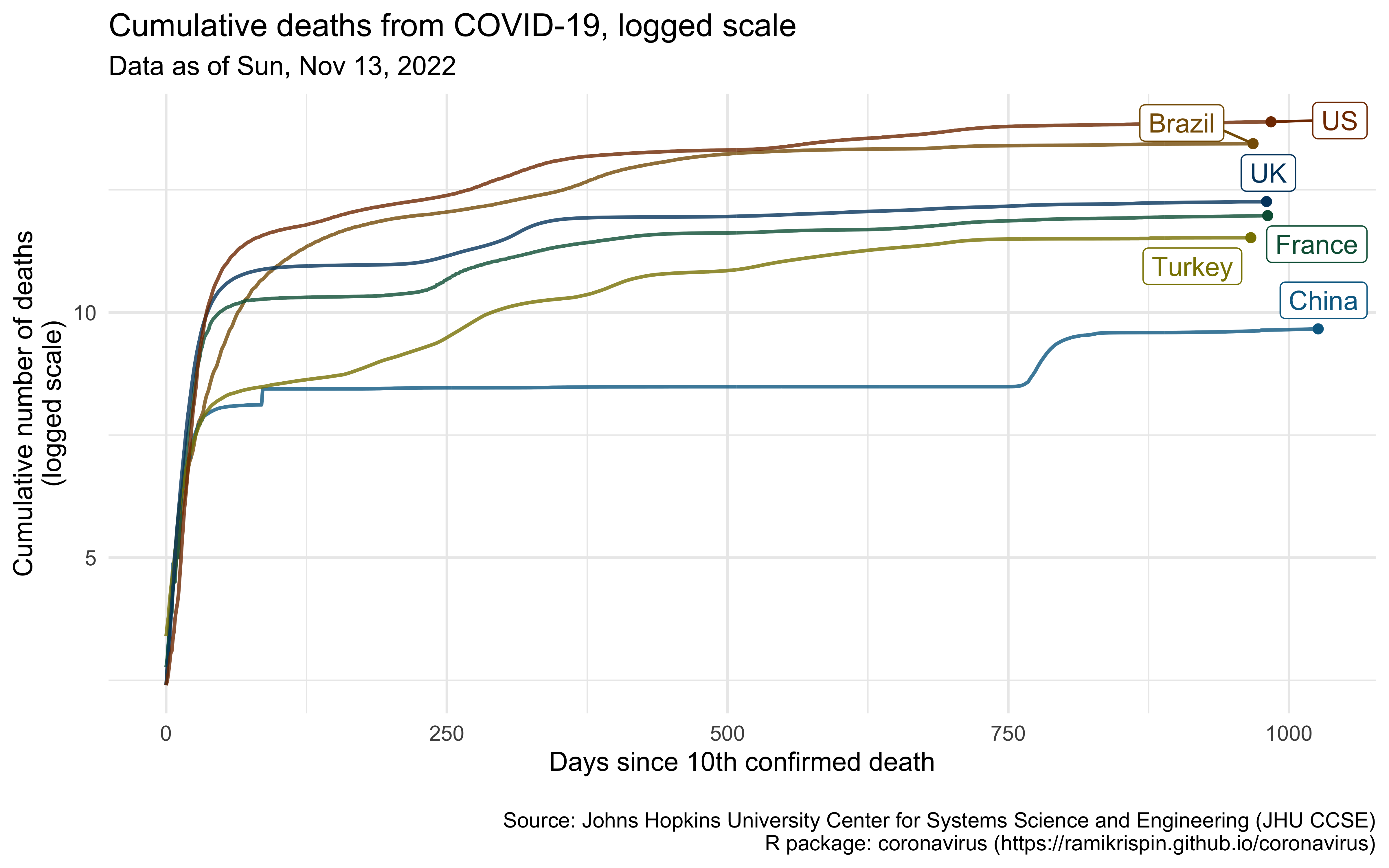

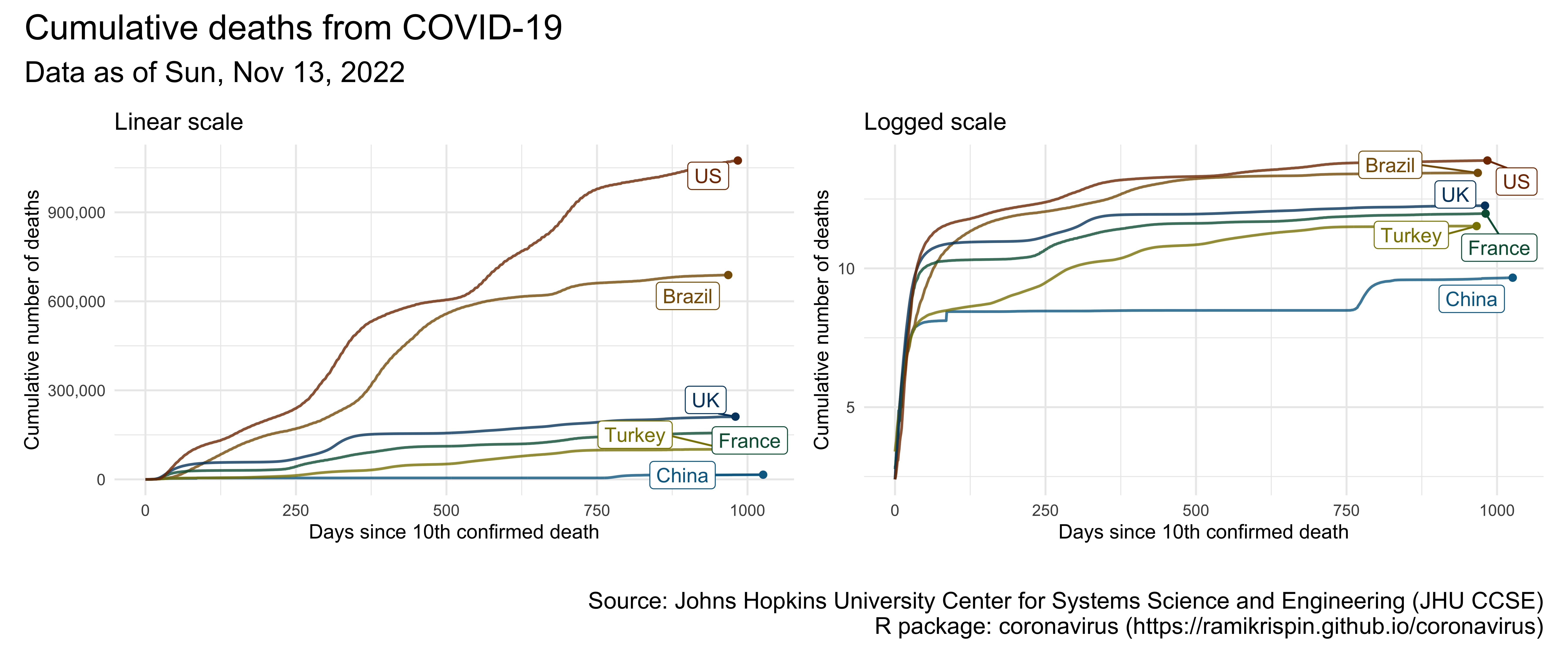

Plot 2: Logged scale

Which plot do you prefer, and why?

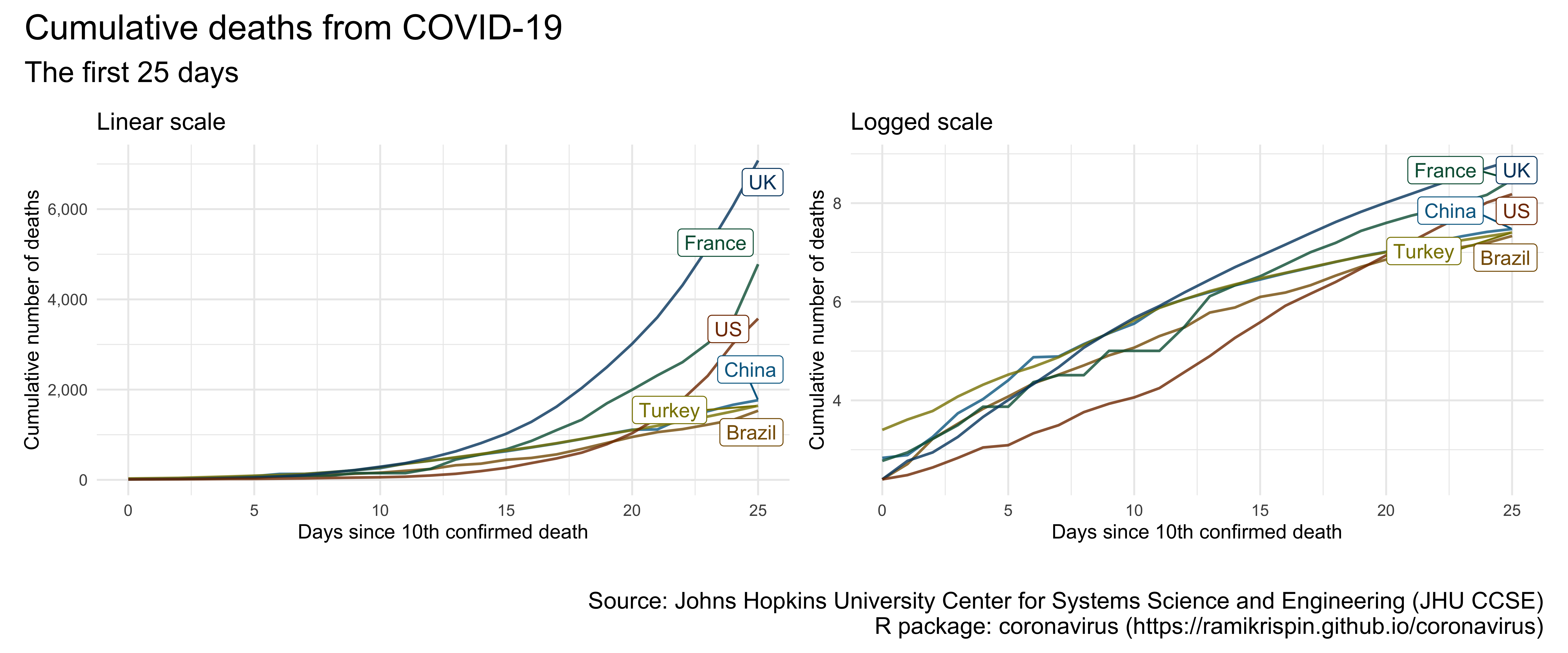

Zoom in to the first 25 days: Which plot do you prefer, and why?

Summary

  • Your data scale matters!
  • Keep in mind not just best practices, but also your audience and the amount of supplementary information you can provide

visualizion resources

Resources
