Dashing through the snow ❄️
(or Sharing your data)
in a Quarto Dashboard
![]()
Hello, Quarto!

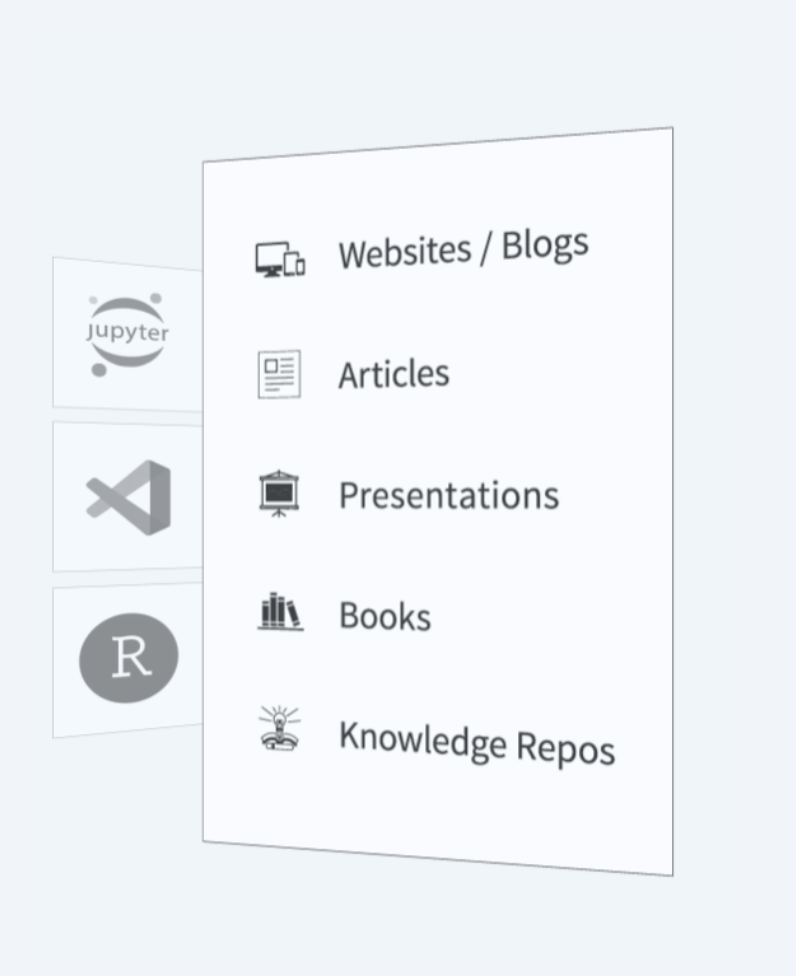

Hello, Quarto!Quarto — https://quarto.org
An open-source scientific and technical publishing system that builds on standard markdown with features essential for scientific communication.
Pandoc Markdown
Jupyter Kernels
Dozens of Output Formats
Specialized Project Types

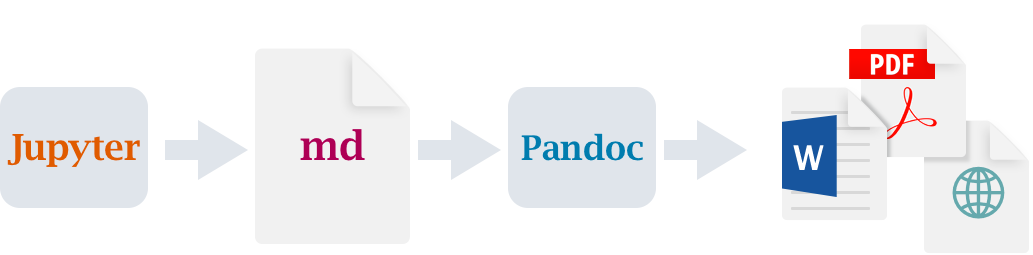

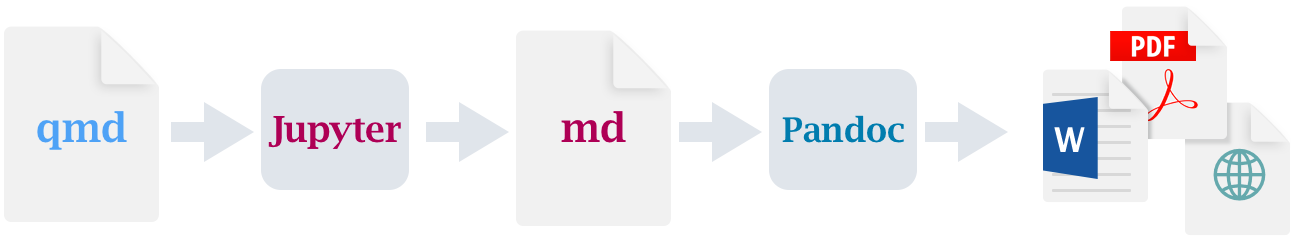

How does Quarto work?
Computations: Jupyter (and Knitr and ObservableJS)
Markdown: Pandoc
with many enhancements
Output: Documents, presentations, websites, books, blogs

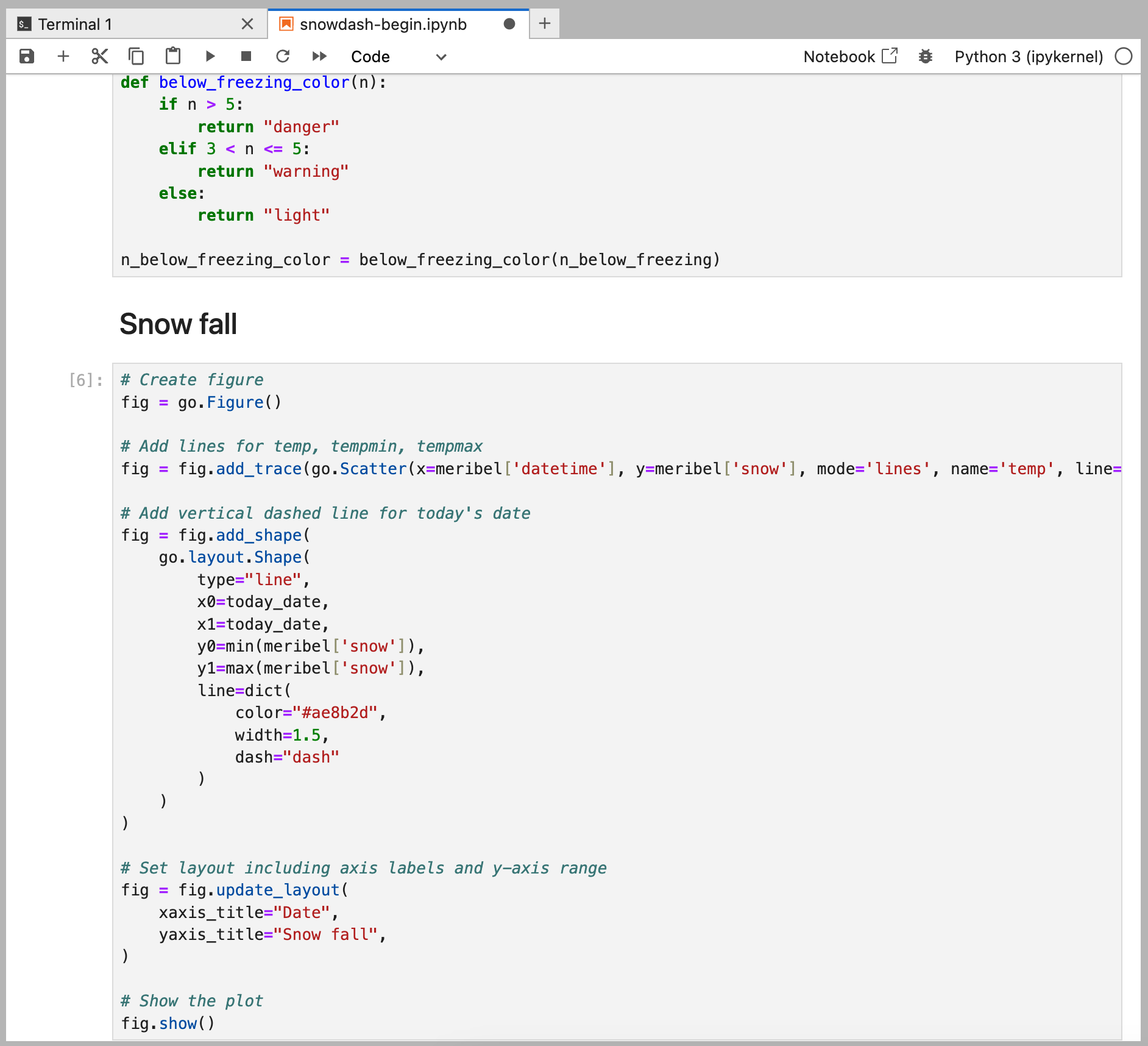

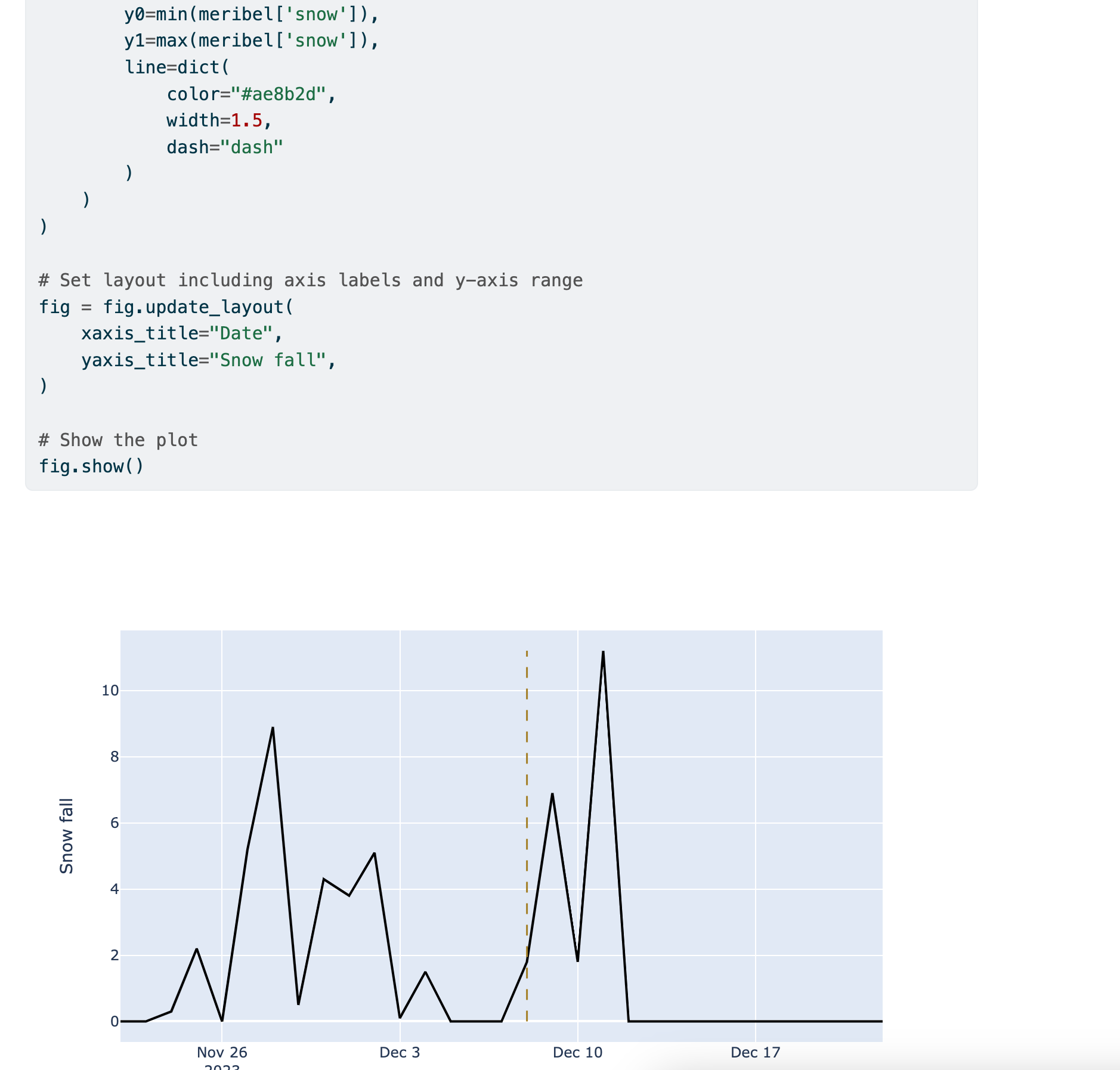

Render Notebook to HTML (default options)

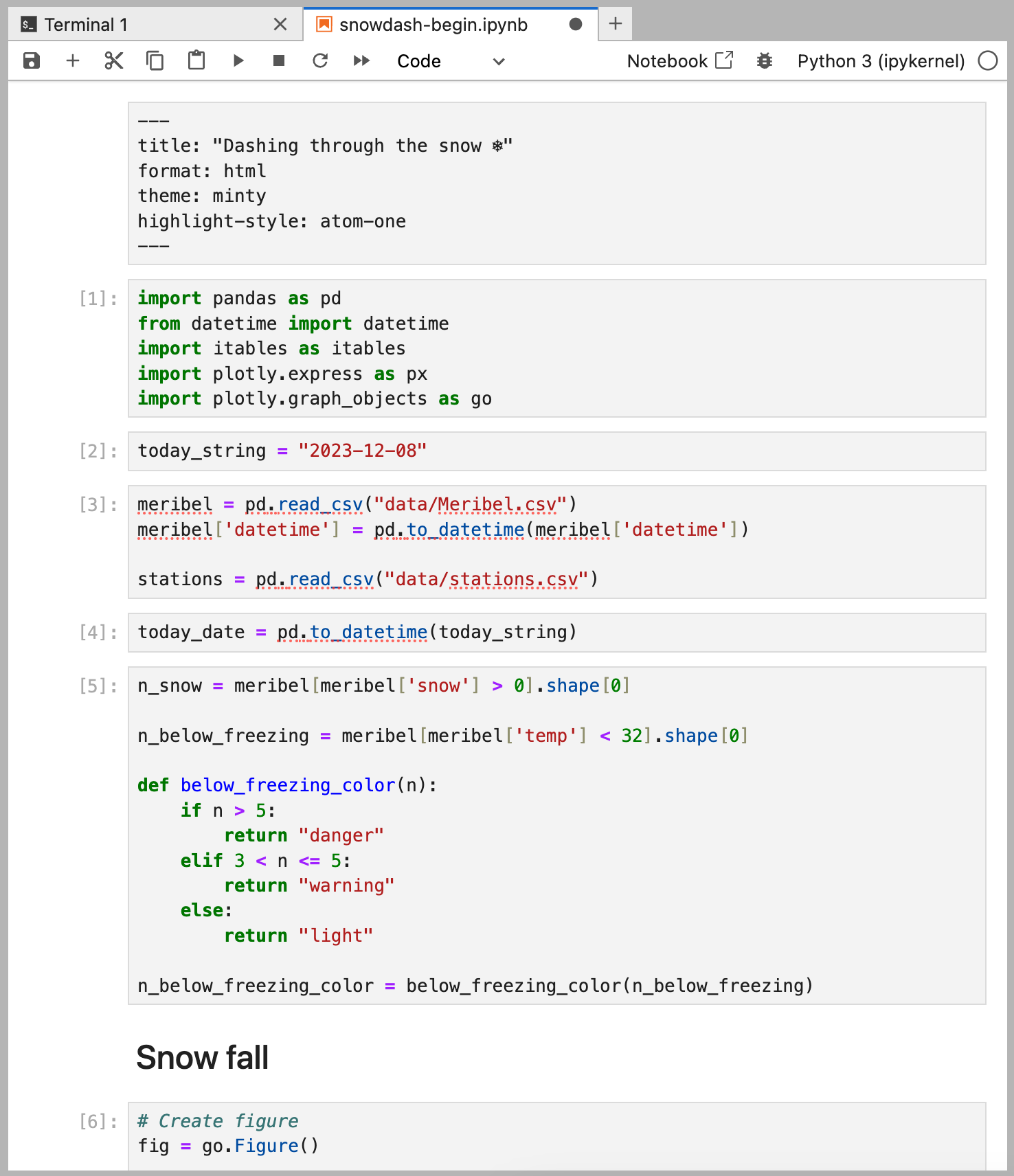

Render Notebook to HTML (document level options)

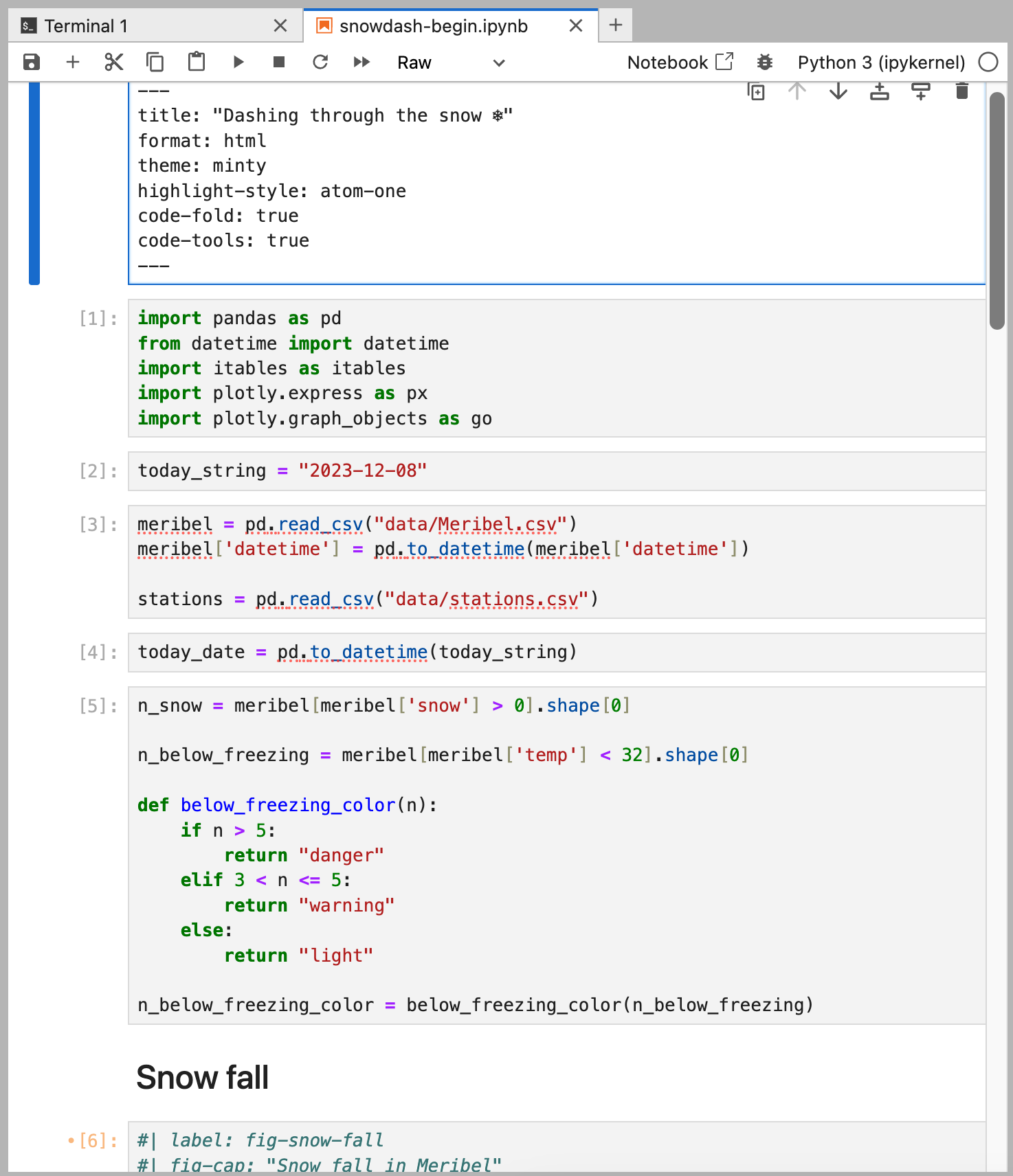

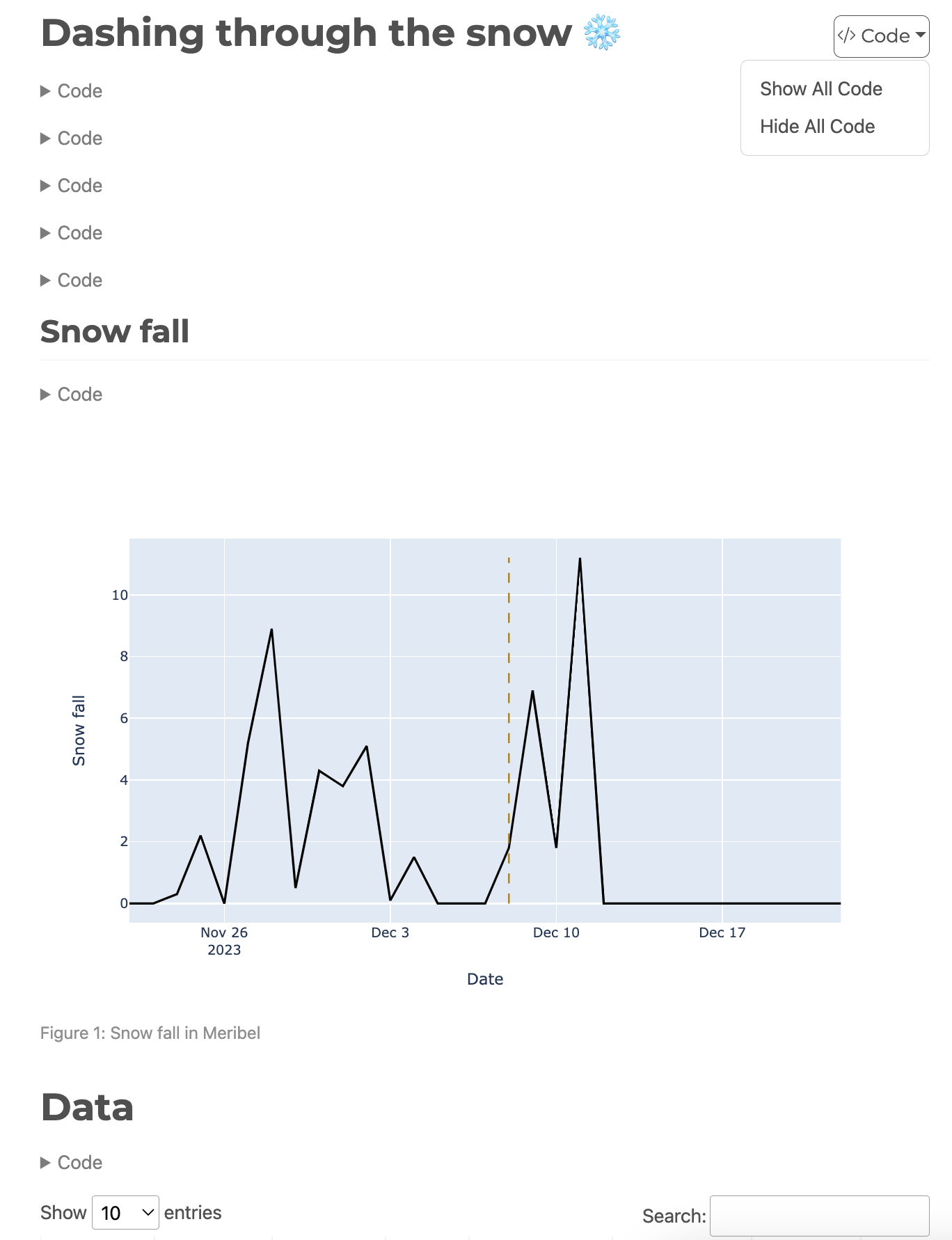

Render Notebook to HTML (document and cell level options)

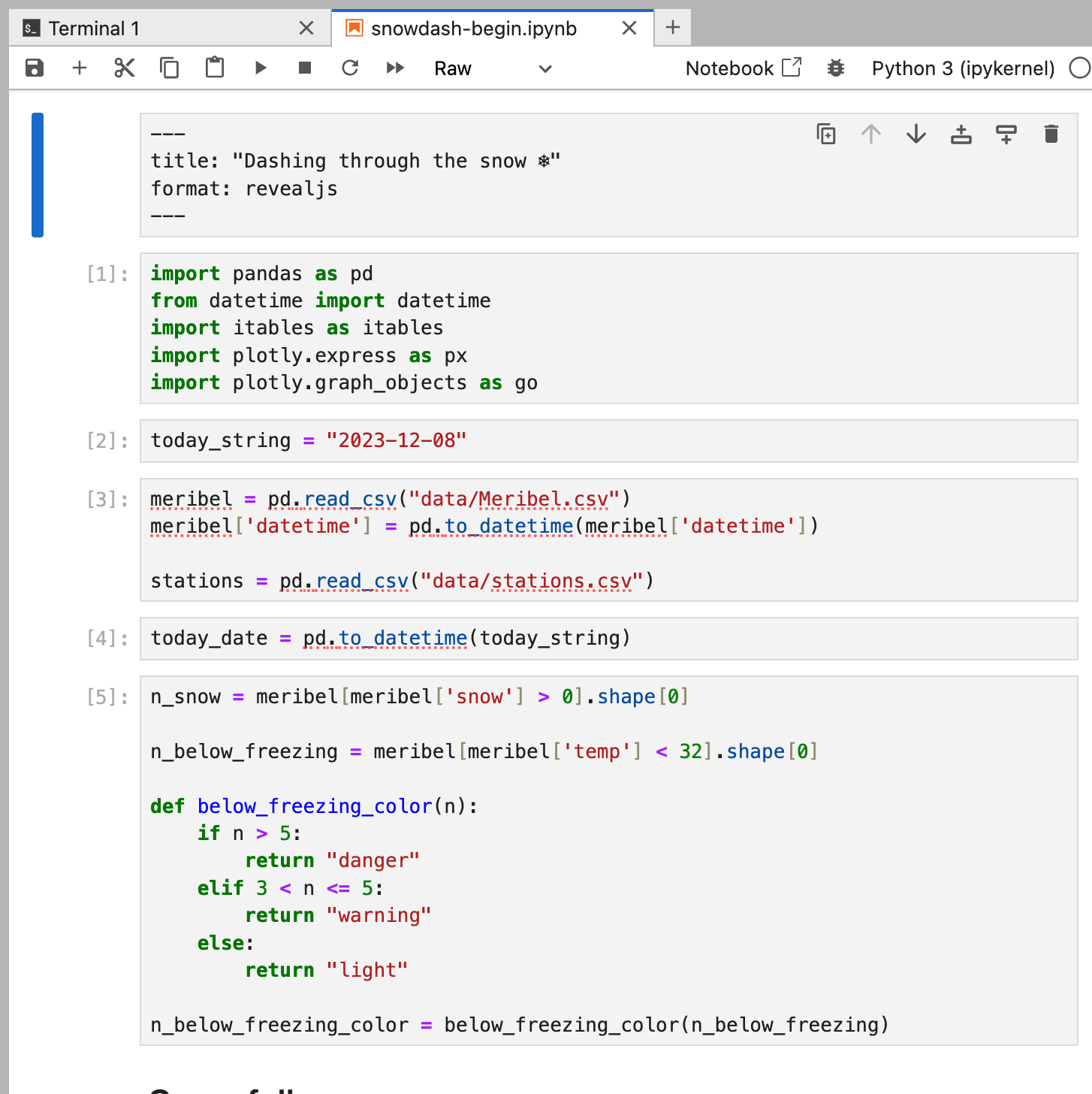

Render Notebook to Revealjs — https://quarto.org/docs/presentations/revealjs/
![]()
Workflow
WorkflowRendering Pipeline
Notebook workflow (no execution occurs by default):
Plain text workflow (.qmd => .ipynb then execute cells):
![]()
Quarto Dashboards
Quarto DashboardsA new output format for easily creating
dashboards from notebooks

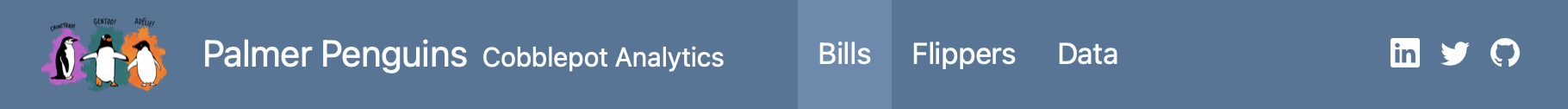

Navigation Bar and Pages
---
title: "Palmer Penguins"
author: "Cobblepot Analytics"
format:
dashboard:
logo: images/penguins.png
nav-buttons: [linkedin, twitter, github]
---
# Bills
# Flippers

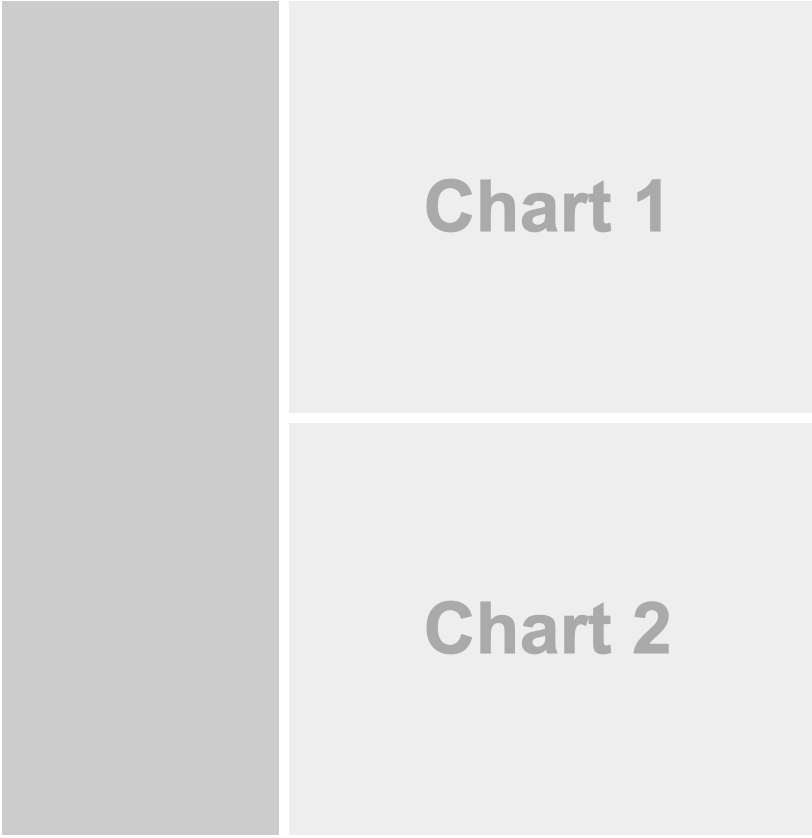

# DataSidebars: Page Level
---
title: "Sidebar"
format: dashboard
---
# Page 1
## {.sidebar}
```{python}
```
## Column
```{python}
```
```{python}
```

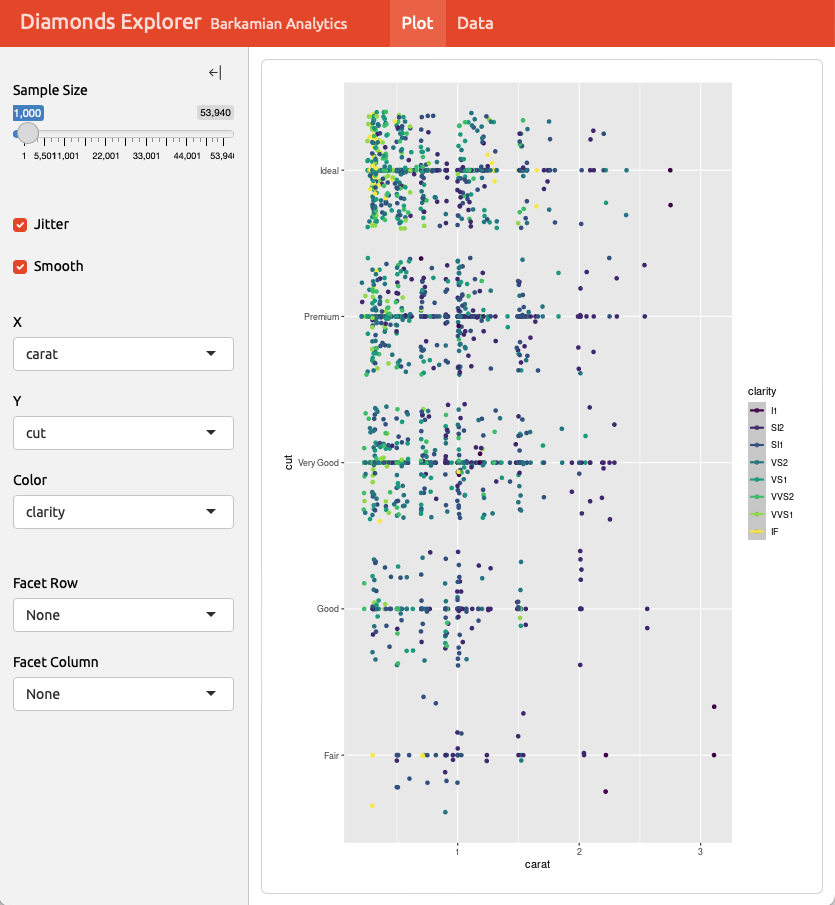

Sidebars: Global
---
title: "Global Sidebar"
format: dashboard
---
# {.sidebar}
Sidebar content (e.g. inputs)
# Plot
```{python}
```
# Data
```{python}
```

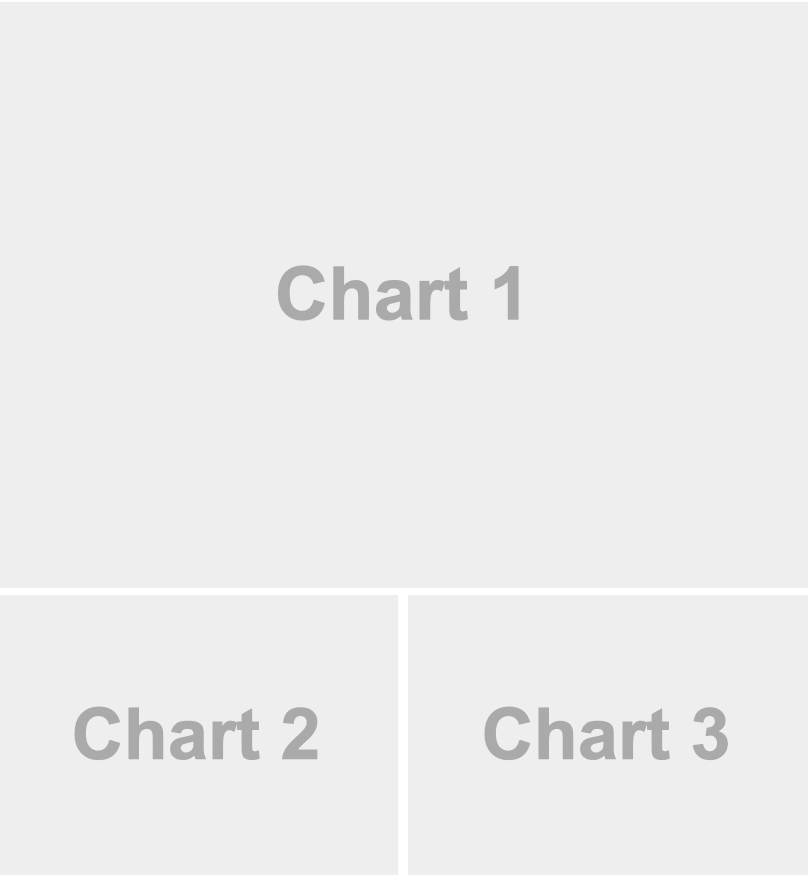

Layout: Rows
---
title: "Focal (Top)"
format: dashboard
---
## Row {height=70%}
```{python}
```
## Row {height=30%}
```{python}
```
```{python}
```

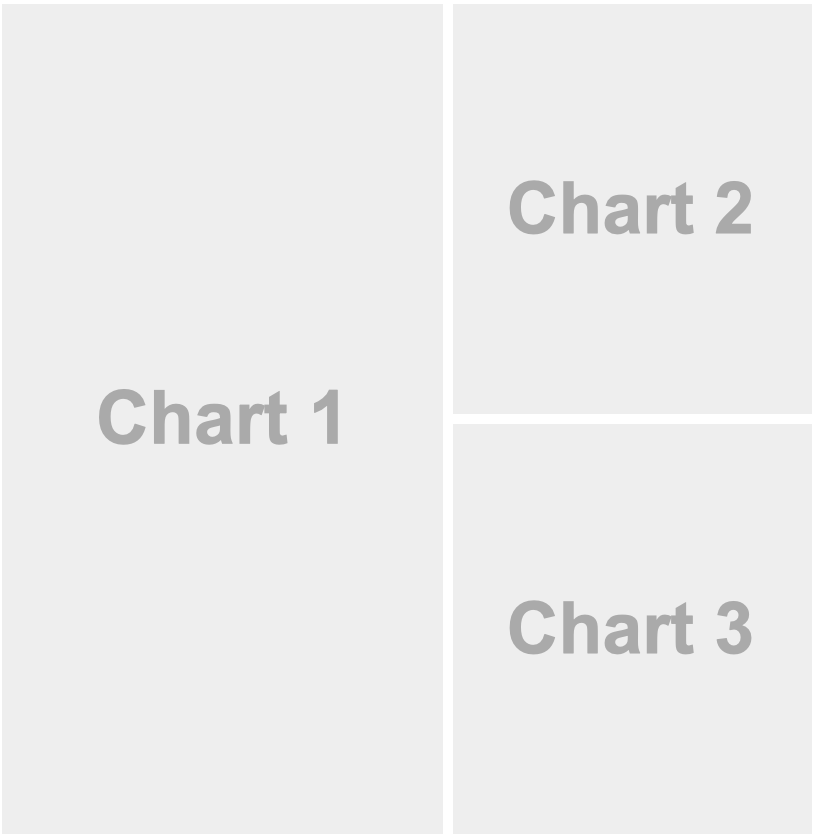

Layout: Columns
---
title: "Focal (Top)"
format:
dashboard:
orientation: columns
---
## Column {width=60%}
```{python}
```
## Column {width=40%}
```{python}
```
```{python}
```

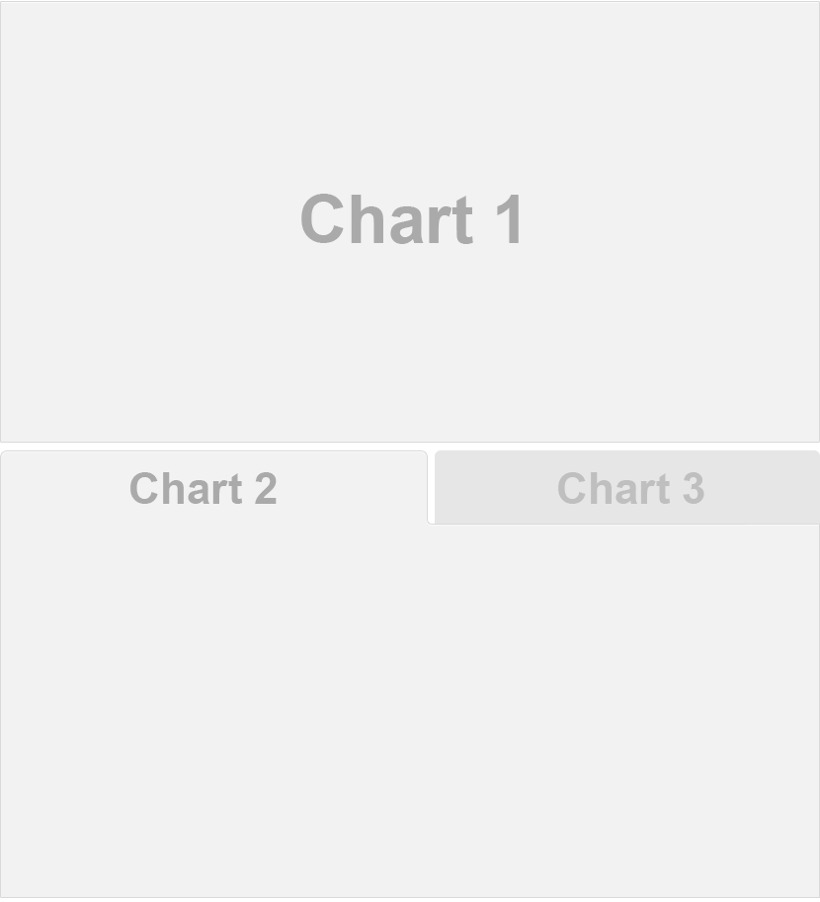

Tabsets
---
title: "Palmer Penguins"
format: dashboard
---
## Row
```{python}
```
## Row {.tabset}
```{python}
#| title: Chart 2
```
```{python}
#| title: Chart 3
```
Plots
```{python}
#| title: GDP and Life Expectancy
import plotly.express as px
df = px.data.gapminder()
px.scatter(
df, x="gdpPercap", y="lifeExp",
animation_frame="year", animation_group="country",
size="pop", color="continent", hover_name="country",
facet_col="continent", log_x=True, size_max=45,
range_x=[100,100000], range_y=[25,90]
)
```

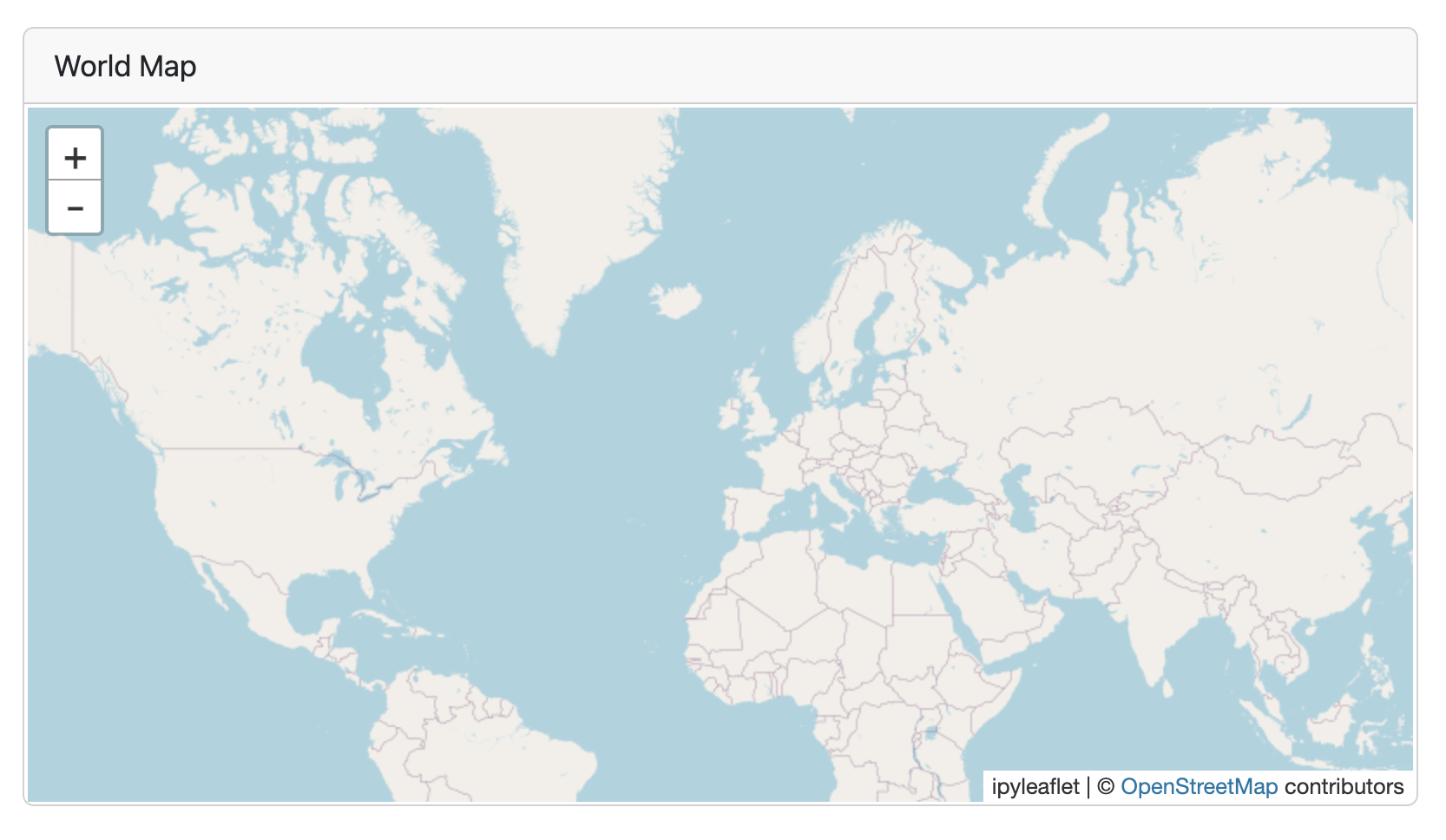

```{python}
#| title: "World Map"
#| padding: 0px
from ipyleaflet import Map, basemaps, basemap_to_tiles
Map(basemap=basemap_to_tiles(basemaps.OpenStreetMap.Mapnik),
center=(48.204793, 350.121558), zoom=2)
```
Tables
```{python}
from tabulate import tabulate
from IPython.display import Markdown
Markdown(tabulate(penguins, showindex=False)}
```

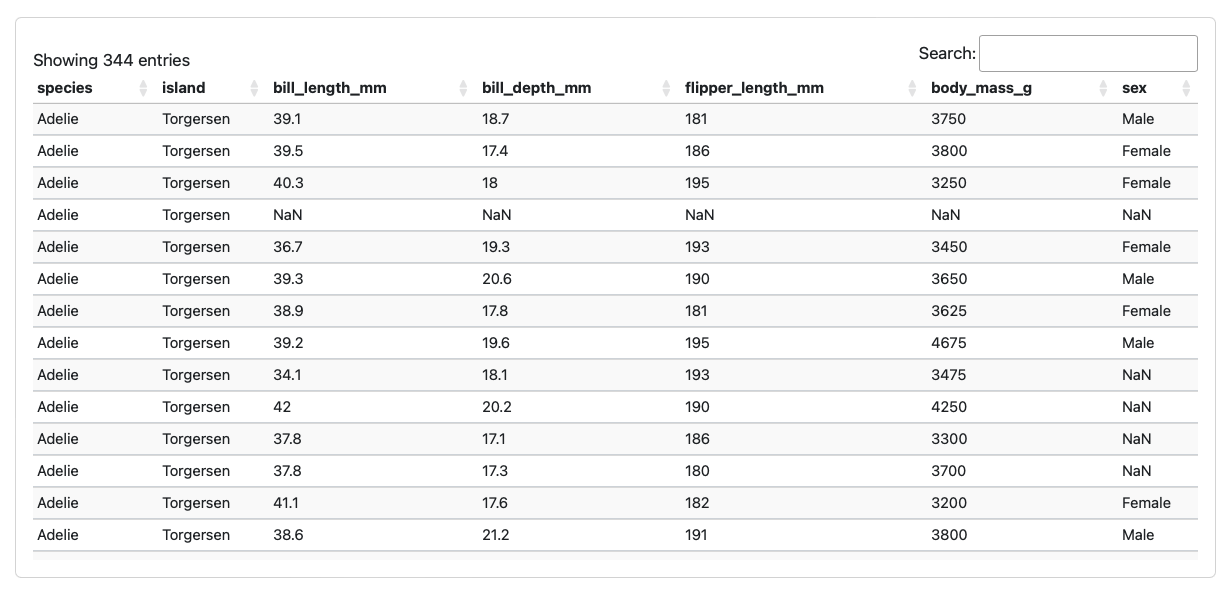

```{python}
from itables import show
show(penguins)
```

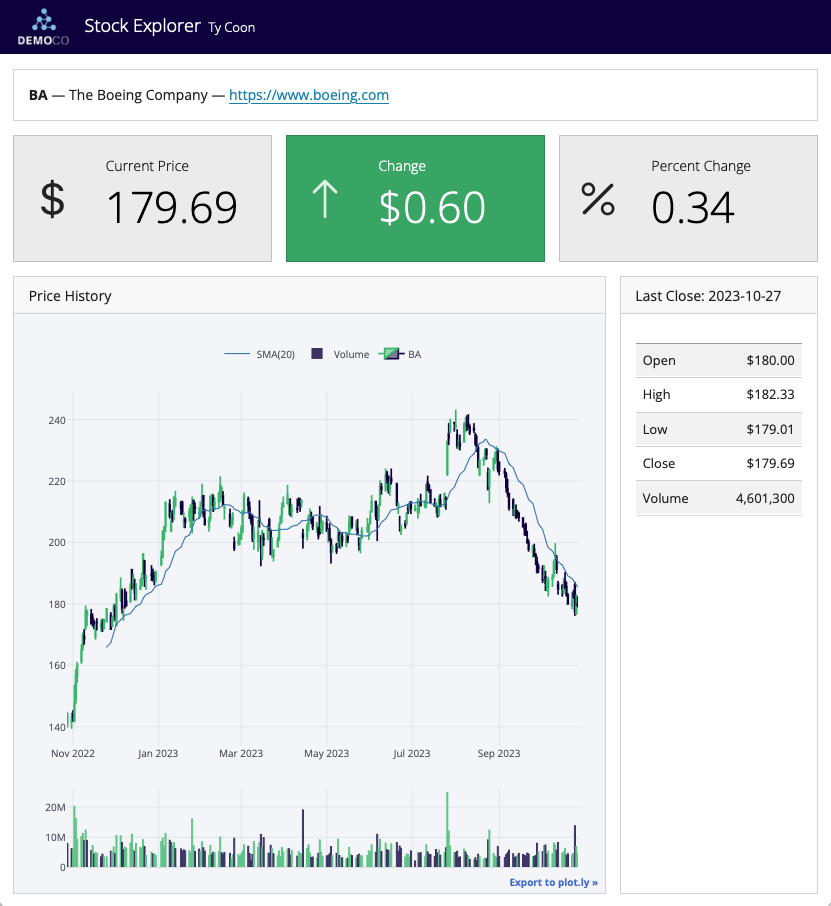

Value Boxes
## Row
```{python}
#| component: valuebox
#| title: "Current Price"
dict(icon = "currency-dollar",
color = "secondary",
value = get_price(data))
```
```{python}
#| component: valuebox
#| title: "Change"
change = get_change(data)
dict(value = change['amount'],
icon = change['icon'],
color = change['color'])
```

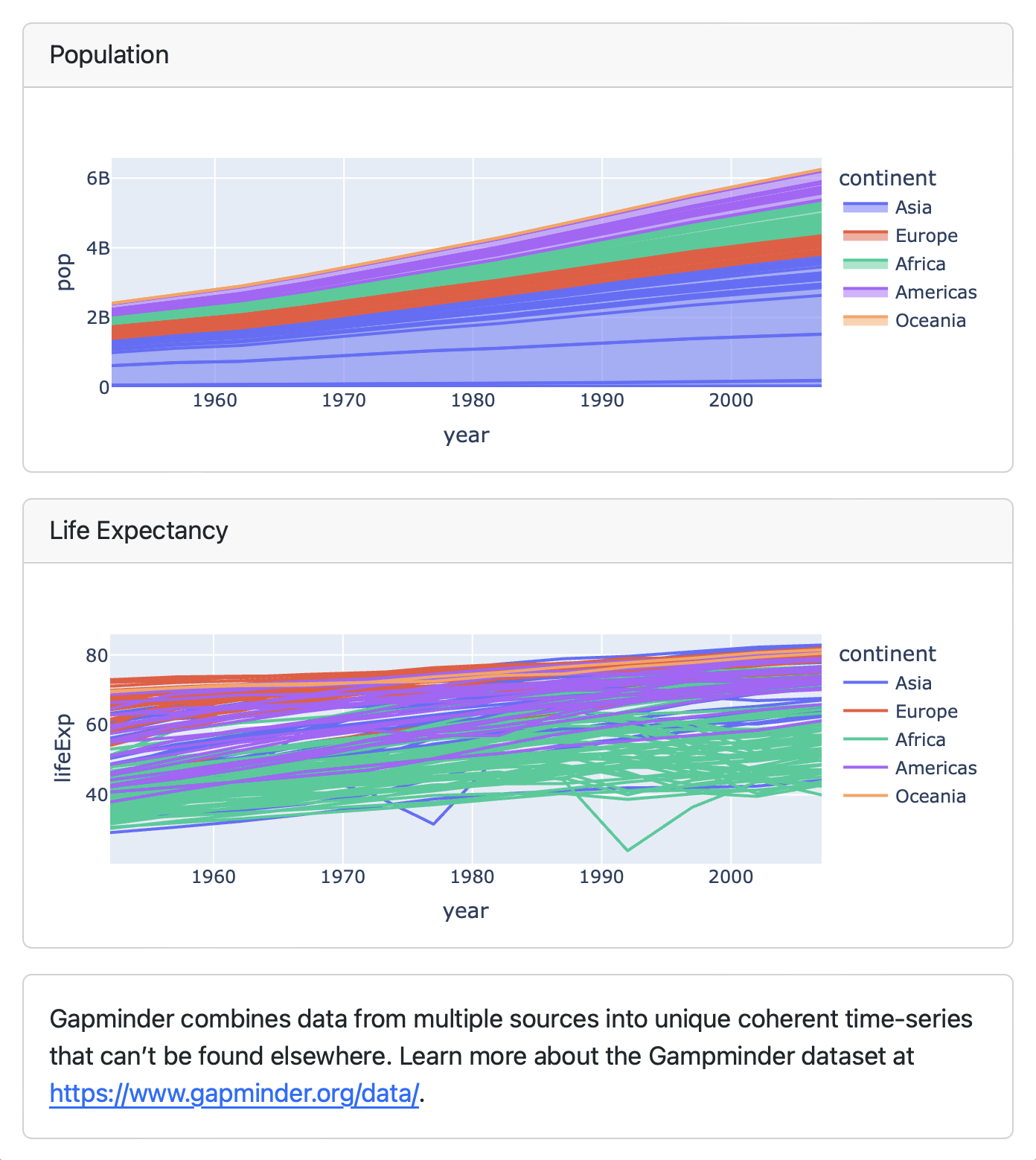

Text Content
## Column
```{python}
#| title: Population
px.area(df, x="year", y="pop",
color="continent",
line_group="country")
```
```{python}
#| title: Life Expectancy
px.line(df, x="year", y="lifeExp",
color="continent",
line_group="country")
```
::: {.card}
Gapminder combines data from multiple sources
into unique coherent time-series that can’t be
found elsewhere. Learn more about the Gampminder
dataset at <https://www.gapminder.org/data/>.
:::

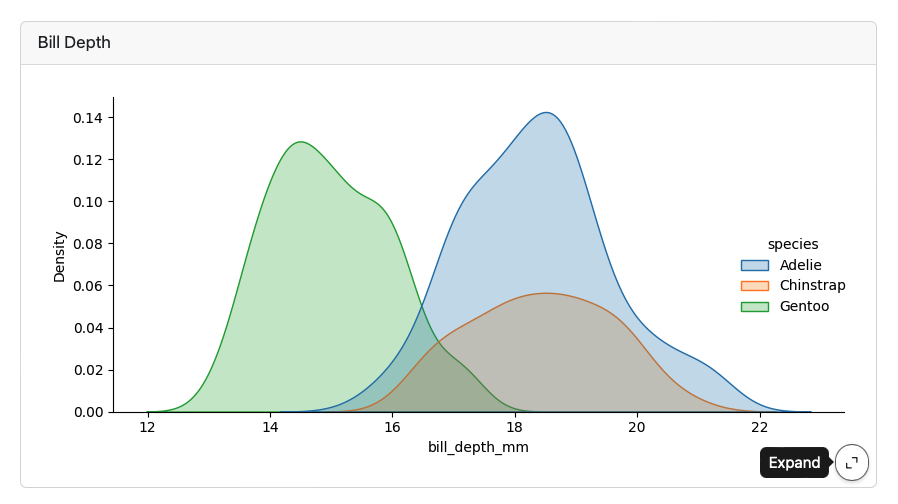

Expanding Cards
Cards provide an Expand button which appears at bottom right on hover:

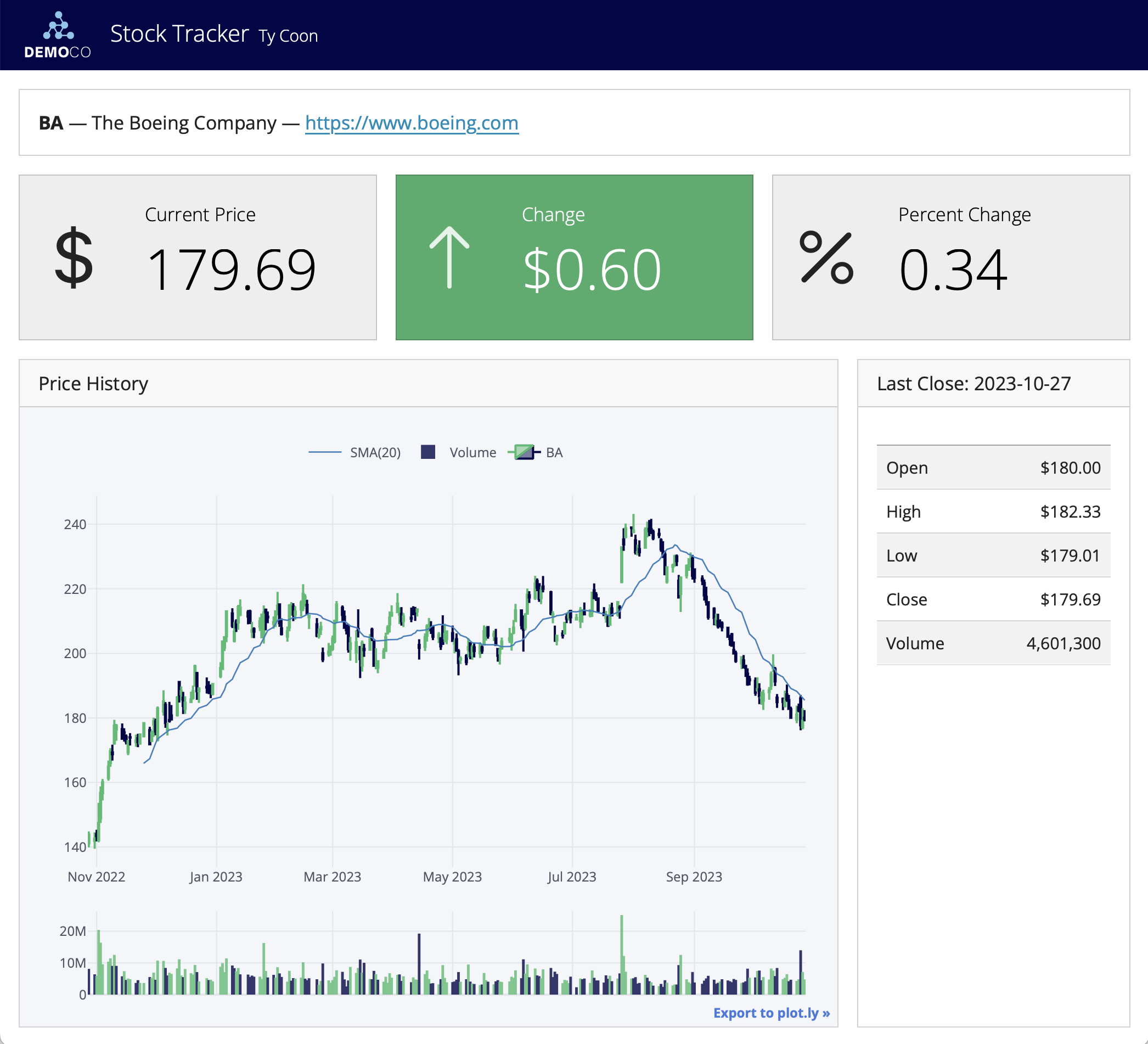

Parameterized Dashboards
Add a parameters tag to the first cell (based on papermill) :
```{python}
#| tags: [parameters]
ticker = "BA"
```Use the -P command line option to vary the parameter:
quarto render dashboard.qmd -P ticker:GOOGInteractive Dashboards

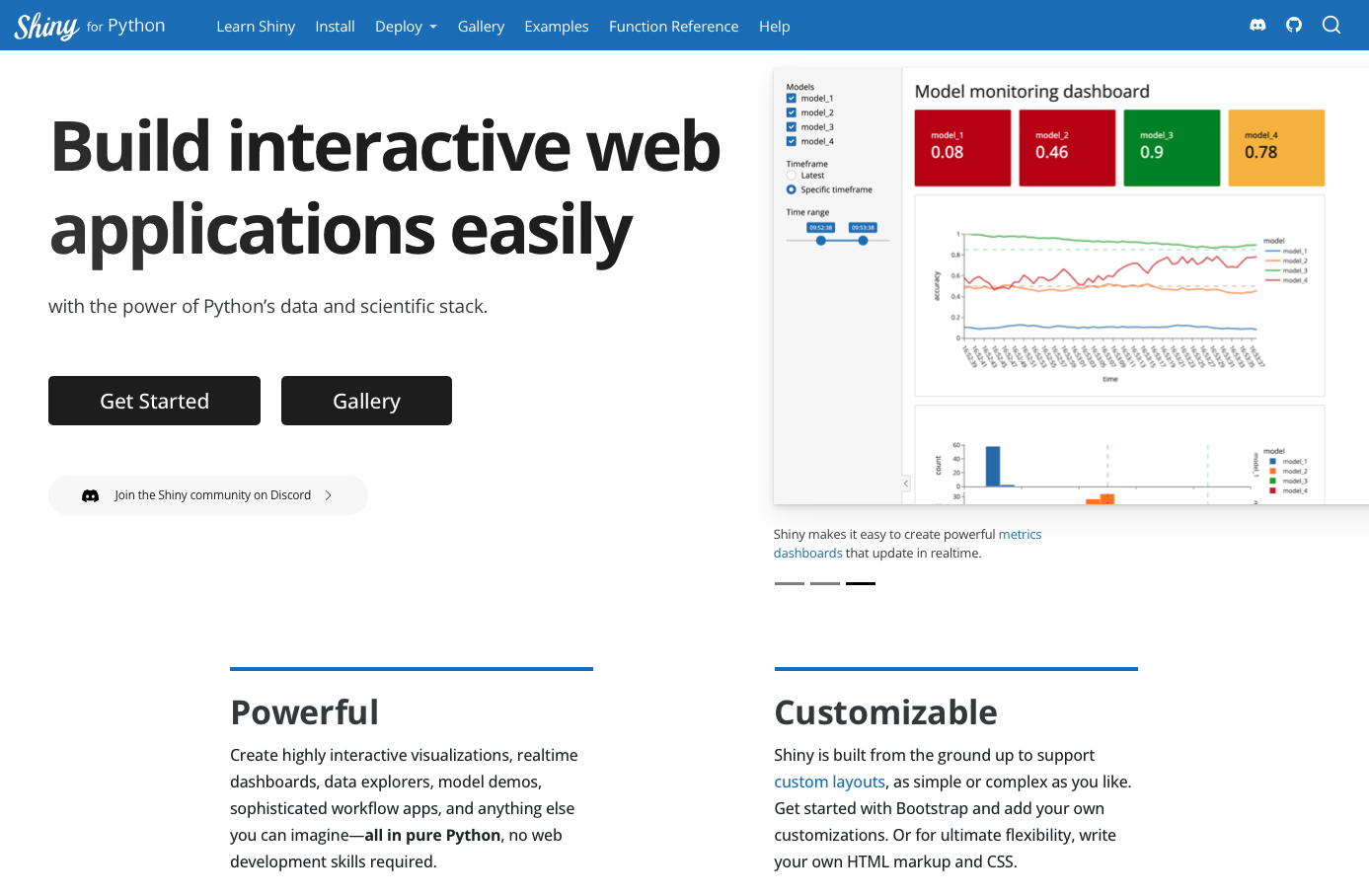

https://quarto.org/docs/dashboards/interactivity/shiny-python/
For interactive exploration, some dashboards can benefit from a live Python backend
To do this with Quarto Dashboards, add interactive Shiny components
Deploy with or without a server!
